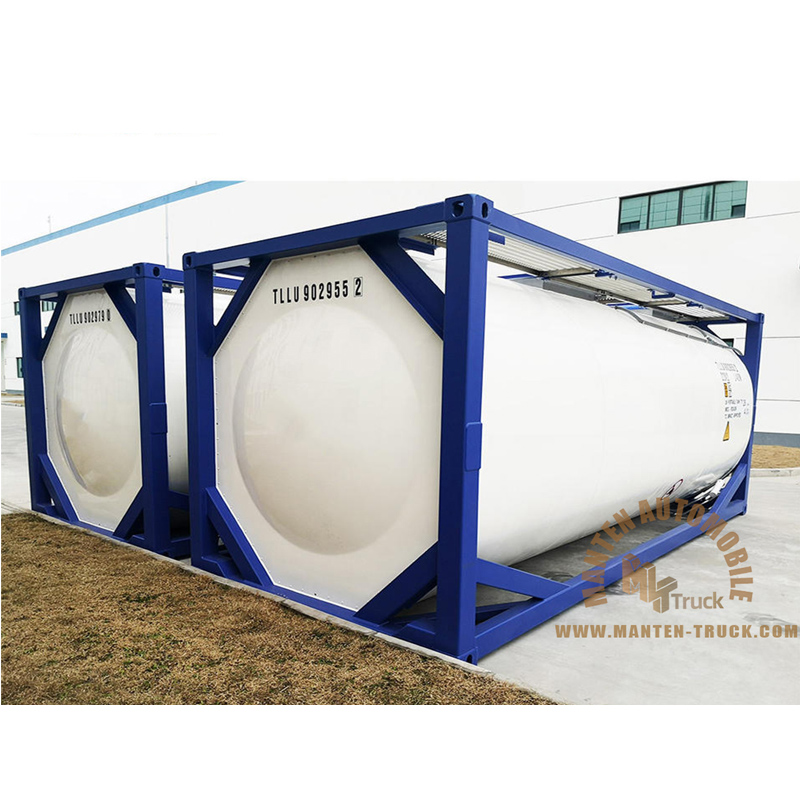

Name: Stainless Steel 20FT Diesel Fuel Tank Container
Brand: Hubei Manten Automobile Co., Ltd.

Specification of Stainless Steel 20FT Diesel Fuel Tank Container

SPECIFICATION
Truck Specification
Product Name		20FT Fuel Tank Container
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 6058×2438×2591 mm
Specification
Transportation/Storage material		Sulfuric&Phosphoric Acid& compound Fertilizer
Max gross weight		36000 kg
Tare weight		3.6tons(±3%)
Type approvals		UN portable tank T11, IMDG, ADR/RID, TIR,CSC, UIC, TC, UK DfT, US-DOT CFR49
Nominal Capacity		26000L(±0.75%)
Portable Tank instruction		T11
Design code		ASME VIII DIV 1
Desgin pressure		4bar
External desgin pressure		0.41 bar
Frame		SPA-H or equivalent
Tank Shell		SANS 50028-7 Type 1.4402/1.4404 (C less than 0.3%),ASTM A240 316L
Finish		Cold Rolled 2B
Tank Heads		SANS 50028-7 Type 1.4402/1.4404 (C less than 0.3%),ASTM A240 316L
Finish		Cold Rolled and polished with 180 grits
Maximum allowable working pressure		4 bar
Test pressure		6 bar
Shell Nominal		4.40mm Minimum: 4.2 mm
Head Nominal		4.70mm Minimum: 4.50 mm
Manhole		500 mm, 8 mm × 90 mm Neck Profiled and Compensated,Fort Vale part No. E4D/8518025BT. 8 point fixing with Super Tanktyt Lid seal for corrosive cargo
Safety Relief Assembly		1 × 2½" BSP Supermaxi Highflow relief valve, pressure only model set at +4.4 bar (63.8psi), Fort Vale Part No. 010/16300.1 × provision for a second valve.
Air line valve		DN 40 ball valve terminating with 1½" BSP connection and cap, Fort Vale part No. 530/0000G.
Top outlet		Provision only, DN80 tank pad, Fort Vale part No. 368/0800,fitted with PTFE gasket & blind flange.
Bottom Discharge Prov.		45°Hi-Lift Footvalve fitted with a clamped butterfly valve terminating with a 3" BSP spigot with cap and chain, Fort Vale part No. 804/0010A.
