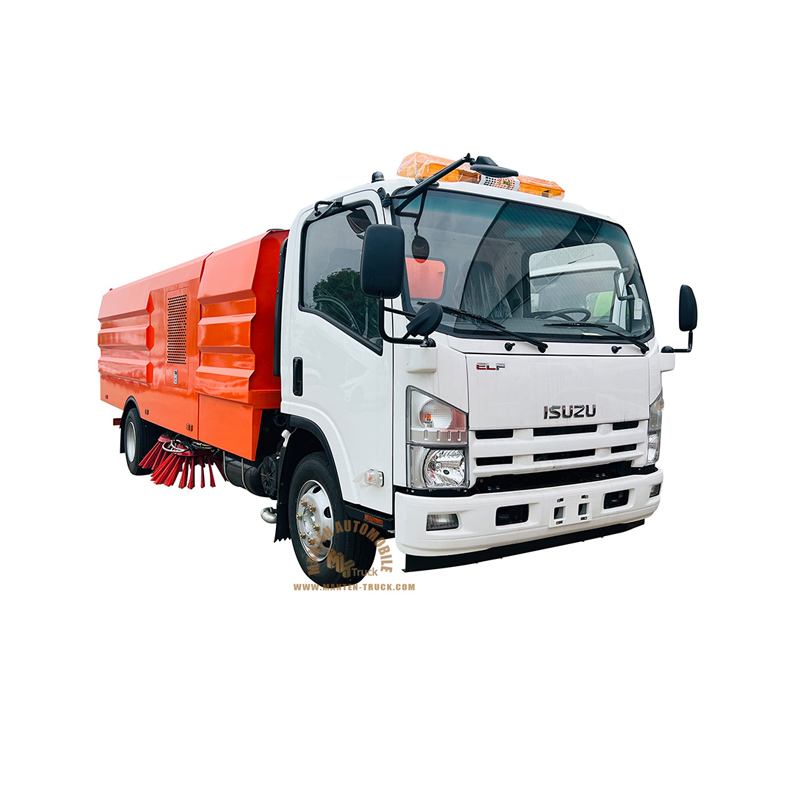

Name: Isuzu Npr 4x2 6 Cbm Road Sweeper Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of Isuzu Npr 4x2 6 Cbm Road Sweeper Truck

SPECIFICATION
Truck Specification
Product Name		6 tons 6000 liters Road sweeper cleaning Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 740023002870mm
Chassis Specification
Cabin		NPR cabin, LHD/RHD, A/C
Drive type		4*2
wheelbase		3800 mm
Fuel type of engine		Diesel
Engine	Model	4HK1-TC Series
	Maximum horse power	190 hp
	Number of cylinders	4
	Emission standard	Euro 4/EURO 5
Gear box	Type	5 forward & 1 rear
Tyres	Size	7.00R16
	Quantity	6+1 spare tire
Upper body specification
Working Performance	1. Sweeping efficiency 95%;
	2. Max suction size 120mm;
	3. Sweeping width 2.8-3.0m;
	4. Max cleaning capacity 60000 m2/h;
	5. Butterfly disc extend size ≥400mm;
	6. Sweeping speed 3-20km/h.
Deputy Engine System
Deputy engine model	JX493-G3,78hp
Fuel type	diesel
Tank System
Water tank	Material: stainless steel
	Volume: 1500L
Garbage tank	Material: stainless steel
	Volume: 6000L
	Discharging door opening angle: ≥45°
Hydraulic System
Type	electrical control
Main components	gear pump, hydraulic motors, hydraulic cylinders, solenoid valve
System pressure	16Mpa
Hydraulic oil tank capacity	60L
Oil temperature	60℃
Electrical System
Type	DC24V
Voltage	24V
Battery	24V
Spraying Water System
Main components	electric diaphragm pump, water filter, nozzle
Sweeping Device System
Type	centre installation 4pcs sweeping disc, hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response
Sweeping disc diameter	850mm
Sweeping disc-angle	forward 4-6°
	outword 4-7°
Sucking Disc System
Type	single suction, hydraulic control, spring suspension
Suction entrance diameter	200mm
