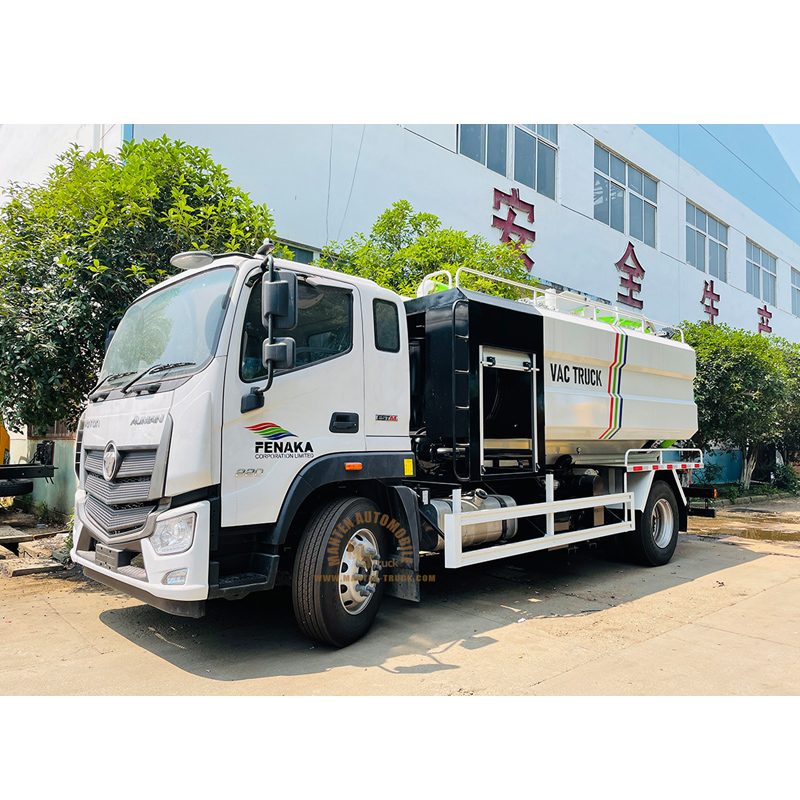

Name: Foton 10 Tons Sewer Jetting Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 10 M3 Foton Sewer Jetting And Suction Truck

SPECIFICATION
Truck Specification
Product Name		10000Liters FOTON sewer jetting and suction Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 10000 25003570mm
Chassis Specification
Cabin		AUMARK，LHD/RHD, A/C
Drive type		4*2
wheelbase		4500
Fuel type of engine		Diesel
Engine	Model	CUMMINS ENGINE
	Maximum horse power	130-220hp
	Number of cylinders	4
	Emission standard	Euro 2
Gear box	Type	6 forward &1 rear
Tyres	Size	7.00R16/8.25-16
	Quantity	6+1 spare tire
Upper body specification
Sewage Tanker	Capacity	8cubic meters (8000 litters)
	Material	High tension steel, 5mm Tank body and End Plate,
Water tanker	Capacity	2000 Litters in front of the sludge tank.
	Material	High tension steel
Dumping System	Middle Tipper	Hydraulic Controlled Rear Door and Middle lifting.
	Rear Door	Hydraulic controlled with sewage drain pipe
Vacuum Pump	Type	Vacuum pump
	Flux	45(L/S)-1200(L/S)
	Rating speed	500~2500(r/min)
	Shaft power	4-112 (kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
	Manufacture	Famous Pump Co., Ltd.
High pressure water pump	Type	High pressure pump, Imported brand
	pressure	13-22 MPA
	Flux	122(L/m)-285(L/m)
	Rating speed rpm	1480-1800 rpm
	Shaft power	31.6-108 (kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min,
	Effective suction range ≥ 8,
	Max vacuum degree ≤ 15 Kpa,
	dump angle ≥ 45
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
	Cylinder vacuum tank can be lifted hydraulically to
	40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel.
	Vacuum pump : Italy or Spain vacuum pumps.
	Anti-rust coating inside tank
