isuzu giga 10000 liters automatic fire engine truck

ISUZU GIGA 10000 Liters Automatic Fire Engine Truck

1. This ISUZU GIGA 10,000 liters automatic fire engine truck adopts ISUZU GIGA chassis , 10,000 liters to 12,000 liters water tank, CB10/60 fire pump, PL48 fire monitor and fire fighting equipment.


2. This ISUZU GIGA 10,000 liters automatic fire engine truck could be equipped with different fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.


3. This ISUZU GIGA 10,000 liters automatic fire engine truck could be equipped with different fire pump (CB10/60 low pressure pump or CB20.10/30.60 medium and low pressure pump ). The max flux is 3600 liters at 10 bar.


3. The water tank material of ISUZU GIGA 10,000 liters automatic fire engine truck can be Q235B carbon steel or stainless steel.


Specification Of ISUZU GIGA 10000 Liters Automatic Fire Engine Truck

SPECIFICATION
Truck Specification
Product NameISUZU GIGA 10,000 liters automatic fire engine truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 10500*2500*3500mm
Chassis Specification
CabinIsuzu VC61 cabin, crew cabin, with A/C
Drive type6*4
wheelbase4575mm+1370mm
Fuel type of engineDiesel
EngineModel6WG1-TCG or 6UZ1-TCG series
Maximum horse power350hp,380jp, 420hp, 480hp
Number of cylinders6
Emission standardEuro 5
Gear boxTypeFAST, Manual, 12 forwards and 2 reverse
TyresSize315/80R22.5,12.00R22.5

Quantity10+1 spare tire
Upper body specification
Water tank and Foam tankCapacity10,000 liters to 12,000 liters
Tank Material5mm Q235 Carbon steel or stainless steel
FunctionEquipped with crew cabin, can sit 2+4 firefighters.
Equipped with fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.
Equipped with (CB10/60 low pressure pump or CB20.10/30.60 medium and low pressure pump ). The max flux is 3600 liters at 10 bar.
Could be equipped with fire fighting equipment like as fire gun, fire hose, high pressure DN25 hose reel or others.
It can realize the long distance fire fighting.


Trucks

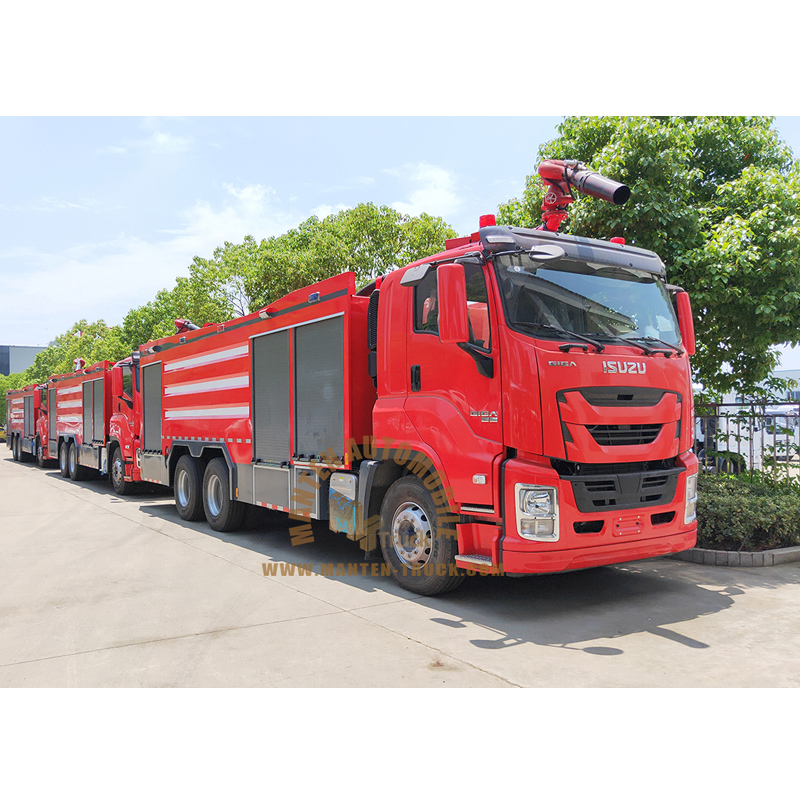

ISUZU GIGA 10000 Liters Automatic Fire Engine Truck Gallery

isuzu giga 10000 liters automatic fire engine truck
foam fire truck
foam tender fire truck
foam unit fire truck
foam fire fighting truck
