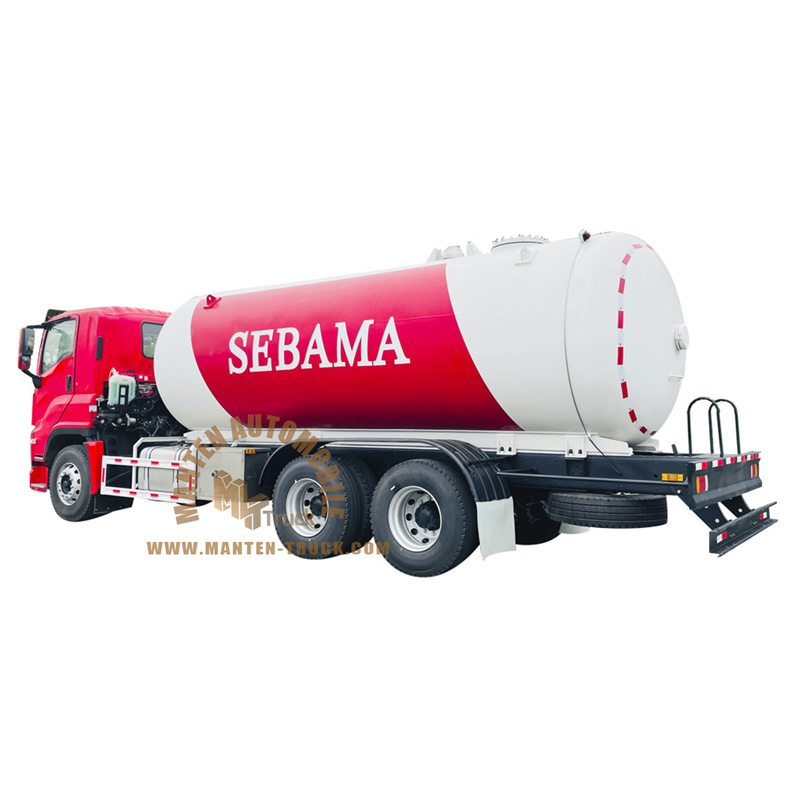

Name: ISUZU 25000liters LPG Transport Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification of ISUZU 25000liters LPG Transport Truck

SPECIFICATION
Truck Specification
Product Name		25000Liters ISUZU LPG Transportation Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 1072024963420mm
Chassis Specification
Cabin		ISUZU，LHD, A/C
Drive type		6*4
wheelbase		3985+1370mm
Fuel type of engine		Diesel
Engine	Model	6UZ1-TCG51
	Maximum horse power	350hp
	Number of cylinders	6
	Emission standard	Euro 5
Gear box	Type	10 forward &2 rear
Tyres	Size	315/80R22.5
	Quantity	10+1 spare tire
Upper body specification
LPG Tank	Capacity	25 M3 / 25000Liters /25CBM lpg tranportation truck
	Tank Material	Q345R high tension steel, 10mm Thick Tank Body.
Tank Specification	Designed Pressure: 1.66Mpa Filling Ratio: 0.55 ton/M3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm
Main Accessories	Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides.
Standard	Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels
