isuzu vc61 10000l fire fighting truck

ISUZU VC61 10000l Fire Fighting Truck

1. This ISUZU VC61 fire fighting truck adopts ISUZU GIGA chassis , 10,000 liters to 15,000 liters water tank, CB10/60 fire pump, PS60 fire monitor and fire fighting equipment.


2. This ISUZU VC61 fire fighting truck could be equipped with different fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.


3. This ISUZU VC61 fire fighting truck could be equipped with different fire pump (CB10/60 low pressure pump or CB20.10/30.60 medium and low pressure pump ). The max flux is 3600 liters at 10 bar.


3. The water tank material of ISUZU VC61 fire fighting truck can be Q235B carbon steel or stainless steel.


Specification Of ISUZU VC61 10000l Fire Fighting Truck

SPECIFICATION
Truck Specification
Product NameIsuzu vc61 10000l fire fighting truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 10500*2500*3500mm
Chassis Specification
CabinISUZU VC61 cabin (GIGA), crew cabin, with A/C
Drive type4*2
wheelbase4565mm+1370mm
Fuel type of engineDiesel
EngineModel6UZ1-TCG50 or 6WG1-TCG51
Maximum horse power350hp, 380hp, 420hp, 460hp
Number of cylinders6
Emission standardEuro 5
Gear boxTypeFAST,Manual, 10 forwards and 2 reverse
TyresSize315/80R22.5 or 12.00R22.5 or 12.00R20

Quantity10+1 spare tire
Upper body specification
Water tankCapacity10,000 liters to 15,000 liters
Tank Material5mm Q235 Carbon steel or stainless steel
FunctionEquipped with crew cabin, can sit 2+4 firefighters.
Equipped with fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.
Equipped with (CB10/60 low pressure pump or CB20.10/30.60 medium and low pressure pump ). The max flux is 3600 liters at 10 bar.
Could be equipped with fire fighting equipment like as fire gun, fire hose, high pressure DN25 hose reel or others.
It can realize the long distance fire fighting.


Trucks

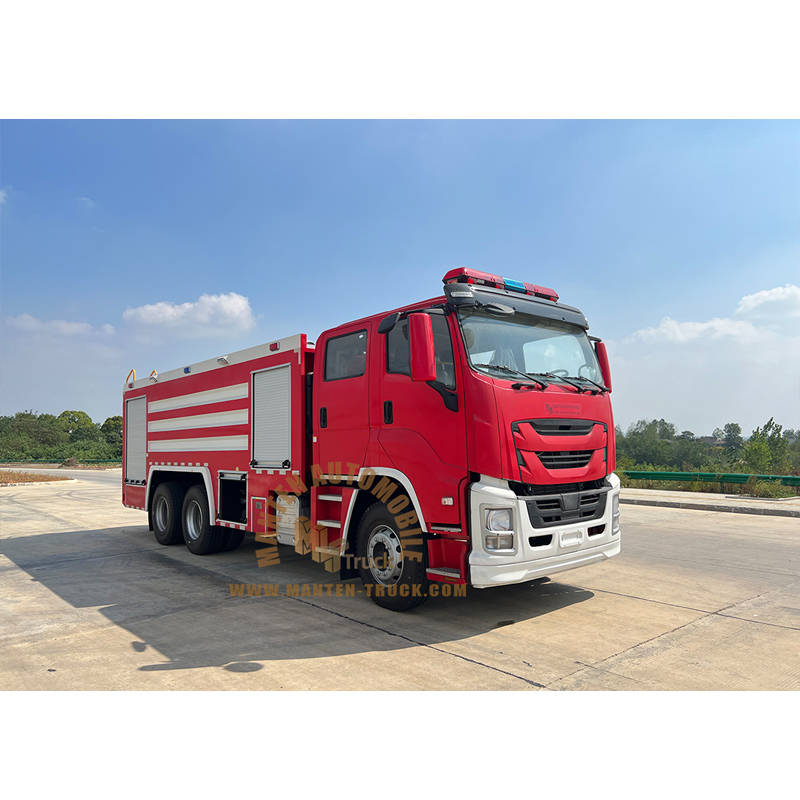

ISUZU VC61 10000l Fire Fighting Truck Gallery

isuzu vc61 10000l fire fighting truck
