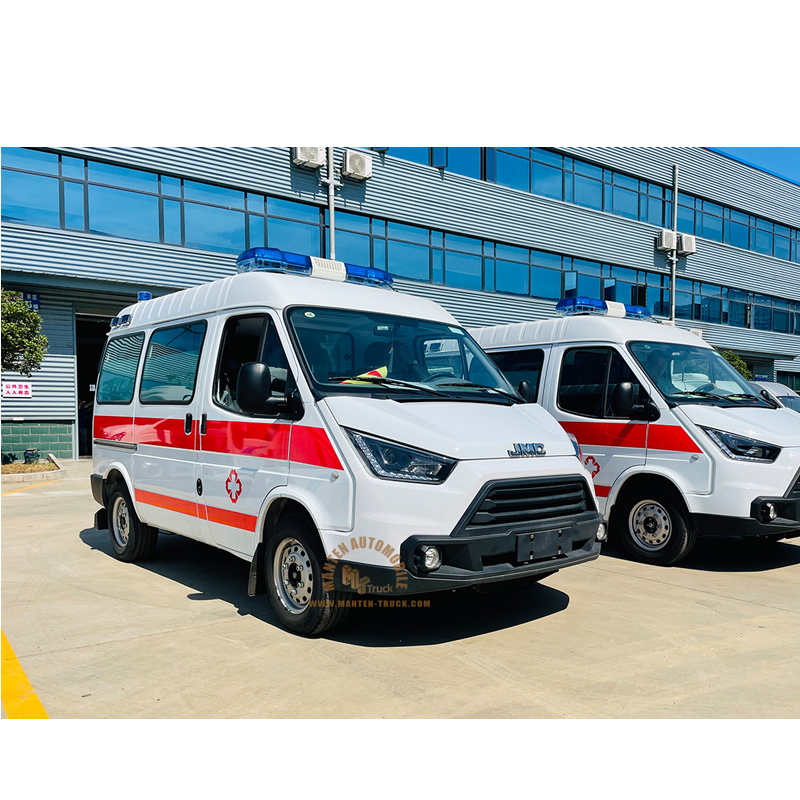

Name: JMC Diesel Engine Patient Transfer Ambulance
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of JMC Diesel Engine Patient Transfer Ambulance

Technical specs of vehicle	DETAIL
Dimensions and masses
Wheelbase (mm)：	2835
Wheel tread (mm)： (front/rear)	1692/ 1700
Minimum ground clearance (mm)：	165
Turning diameter（m）：	9.2
Overall dimensions (mm)：	4900×1972×2440
Dimension of Patient's compartment (mm)：	2300×1760×1520
Complete vehicle curb mass:(kg)：	2160
GVW (kg)：	3510
Number of seat:	5 seats
Engine：	JX493ZLQ5， ISUZU Brand engine
Fuel type:	diesel
Fuel consumption：	6.55L/100km
Working manner:	in-line ,4 cylinders, Turbocharged, high pressure common rail diesel engine
Displacement (L.)：	2771
Emission standard：	Euro 5(China 5)
Maximum power：	85kw
Gearbox：	MT, 5 speed, mechanical
Chassis ：	JX6490T
Front overhang：	McPherson independent suspension
Rear overhang：	Not independent suspension steel spring, hydraulic shock absorber
Brake：	Front disc rear drum, power-assisted brake
Max. speed (Km/h)：	130
Steering system：	gear, rack power-assisted steering
Tire：	215/65R16C

Transit type	1. Portable folding stretcher;
	2. One medicine cabinet;
	3. One fixed installation oxygen cylinder;
	4. Two infusion hooks;
	5. One sterilamp;
	6.one waste bin;
	7. Two single seats;
	8. One set long chair(2 seat cushion, soft back and seat belt);
	9.one set middle partition with sliding window;
	10. One set full blue warning lamp alarm on the top of the front;
	11. Two 12V light lamps;
	12. One inverter;
	13.one group 220V power socket;
	14. Medical wear-resistant plastic leather floor;
	15. Sign the ambulance cross;
	16. air conditioning and heater.
