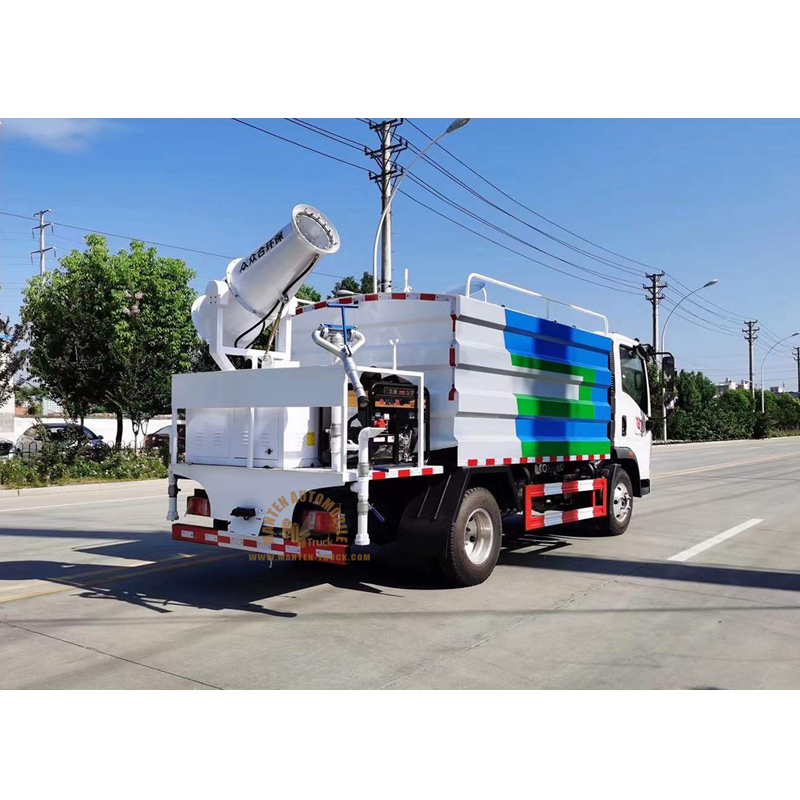

Name: Howo 4x2 Lhd Dust Suppression Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of Howo 4x2 Lhd Dust Suppression Truck

SPECIFICATION
Truck Specification
Product Name		6000Liters siontruk howo dust suppression truck with rear machine
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 600022002870mm
Chassis Specification
Cabin		hW2080 cabin，LHD/RHD, A/C
Drive type		4*2
wheelbase		3360mm
Fuel type of engine		Diesel
Engine	Model	YN4102QBZL
	Maximum horse power	116 hp
	Number of cylinders	4
	Emission standard	Euro 2
Gear box	Type	6 forward &1 rear
Tyres	Size	7.50R16
	Quantity	6+1 spare tire
Upper body specification
Water Tank	Capacity	6 M3 / 6000Liters /6CBM Water dust suppression Truck
	Tank Material	5mm Q235 Carbon steel
Function	Equipped with fire valve, water valve, and filter gauze
	Equipped with front (rear, side) sprinkler (sprinkling width>14m )
	Equipped with rear working platform with water cannon (range>28m)
	Head of delivery :100M
	Equipped with water pump(suction lift>6m)
Maximum Spray Range(m)		100
Maximum Spray Height(m)		30
Spray Volume(L/min)		0～160
Spray Water Pressure(Mpa)		2
Nozzle Pitch Angle(°)		-10～60
Horizontal Rotation Angle(°)		-90～90
