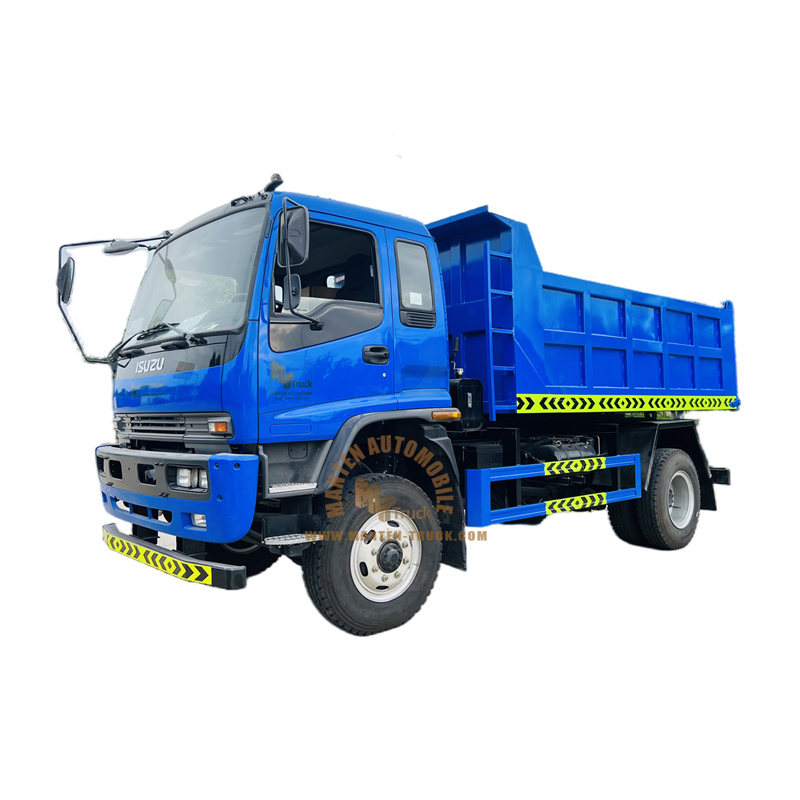

Name: ISUZU 4x2 3ton-4ton Dump Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of ISUZU 4x2 3ton-4ton Dump Truck

SPECIFICATION
Truck Specification
Product Name		isuzu 4x2 3ton-4ton dump truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 650023002400mmmm
Chassis Specification
Cabin		ISUZU 600p cabin
Drive type		4*2
wheelbase		3360mm or 3800mm
Fuel type of engine		Diesel
Engine	Model	4KH1CN5HS, isuzu
	Maximum horse power	130hp
	Number of cylinders	4
	Emission standard	Euro 5
Gear box	Type	MSB,Manual, 5 forwards and 1 reverse
Tyres	Size	7.00R16 radial tyre
	Quantity	6+1 spare tire
Upper body specification
Dumper box	Capacity	3m3/4m3/3ton-4ton
	Tank Material	5mm Q235 Carbon steel, or Q345 steel
Function	Equipped with hydraulic middle lifting cylinders.
	Equipped with different many different size dumper box with Q235 carbon steel or Q345 steel .
	Equipped with hydraulic automatic operation.
	Equipped with self unloading function.
