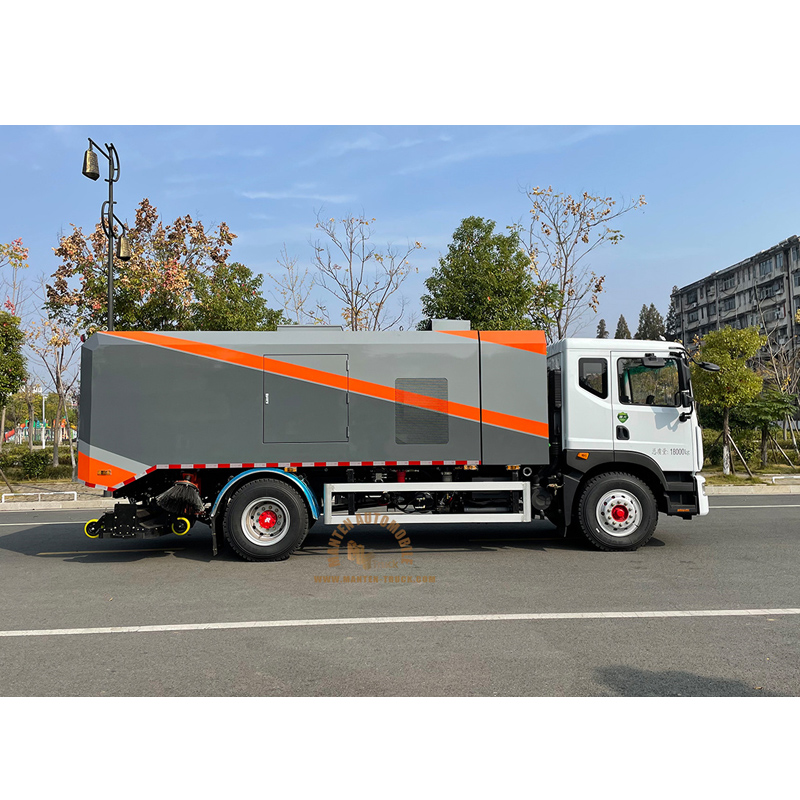

Name: Dongfeng 12 Tons Vacuum Road Sweeper
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 12 Tons 12 M3 Dongfeng Vacuum Raod Sweeper Truck

SPECIFICATION
Truck Specification
Product Name		12 tons 12000 liters dongfeng Vacuum Road sweeper Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 920025003370mm
Chassis Specification
Cabin		dongfeng cabin ，LHD/RHD, A/C
Drive type		4*2
wheelbase		4500 mm
Fuel type of engine		Diesel
Engine	Model	B17033 B190 33 Cummins engine Series
	Maximum horse power	170-190 hp
	Number of cylinders	4cylinders/6 cylinders
	Emission standard	Euro 2
Gear box	Type	8 forward & 1 rear
Tyres	Size	8.25R16
	Quantity	6+1 spare tire
Upper body specification
Working Performance	1. Sweeping efficiency 95%;
	2. Max suction size 110mm;
	3. Sweeping width 2.4-3.0m;
	4. Max cleaning capacity 51000 m2/h;
	5. Butterfly disc extend size ≥400mm;
	6. Sweeping speed 3-15km/h
Deputy Engine System
Deputy engine model	B140 33 140hp
Fuel type	diesel
Tank System
Water tank	Material : stainless steel/carbon steel
	Volume: 3500L
Garbage tank	Material : stainless steel/carbon steel
	Volume : 10000L
	Discharging door opening angle : ≥85°
Hydraulic System
Type	electrical control
Main components	gear pump, hydraulic motors, hydraulic cylinders, solenoid valve
System pressure	16Mpa
Hydraulic oil tank capacity	60L
Oil temperature	60℃
Electrical System
Type	DC24V
Voltage	24V
Battery	24V
Spraying Water System
Main components	electric diaphragm pump, water filter, nozzle
Sweeping Device System
Type	rear or centre installation 2 pcs sweeping disc,hydraulic motor drive
Sweeping disc diameter	300-600mm
Sweeping disc- angle	forward 4-6°,
	outword 4-7°
Sucking Disc System
Type	single suction, hydraulic control, spring suspension
Suction entrance diameter	320 mm
