isuzu 4x2 wingspan truck

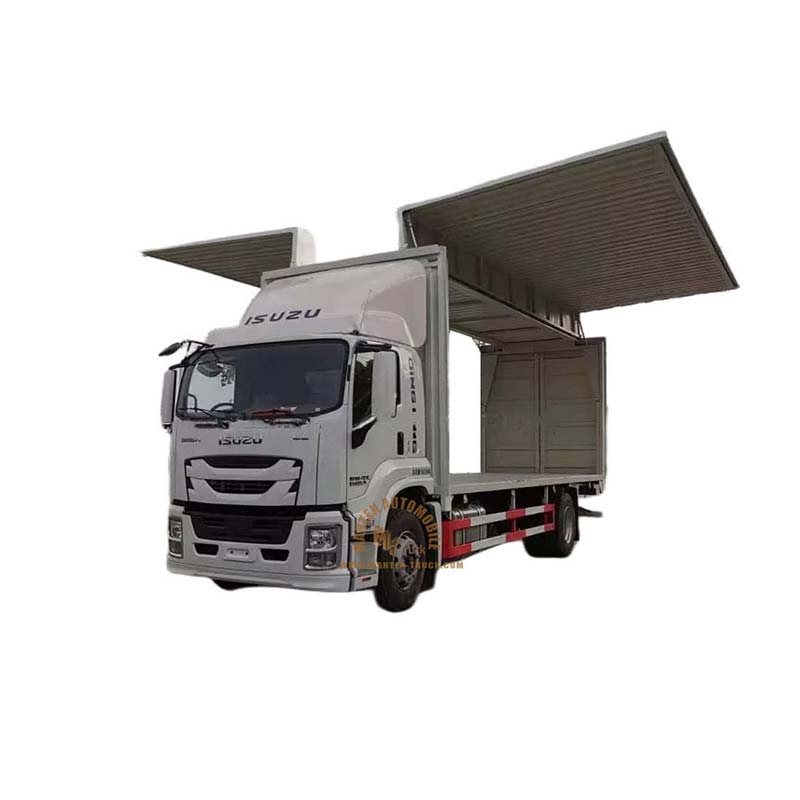

ISUZU 4x2 Wingspan Truck

1. This wingspan van truck adopts heavy load ISUZU chassis, which is strong and reliable up to 15 years lifespan.


2. The two side wing plate can be opened by 90°through hdyraulic system,


3. The design of the frame and axle assembly adopts high-strength materials and stamping and welding processes to realize the lightweight design of the chassis and make the vehicle operation more economical.


Specification Of ISUZU 4x2 Wingspan Truck

SPECIFICATION
Truck Specification
Product NameISUZU 4x2 Wingspan TruckTruck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 9000×2500×3400mm
Chassis Specification
CabinLHD, A/C
Drive type4x2
wheelbase5550mm
Fuel type of engineDiesel
EngineModelISUZU 6HK1-TCL
Maximum horse power240HP
Number of cylinders6
Emission standardEuro 5
Gear boxTypeMLD, 6-Forwards+ 1-Reverse
TyresSize295/80R22.5
Quantity6+1 spare tire
Cargo body specification
CargoLoading Capacity15t
Cargo Material4~5mm carbon steel Q235B
Cargo Size7000x2350x2200mm
Wingspan typeWingspan on both sides, driven by hydraulic cylinder


Trucks

ISUZU 4x2 Wingspan Truck Gallery
