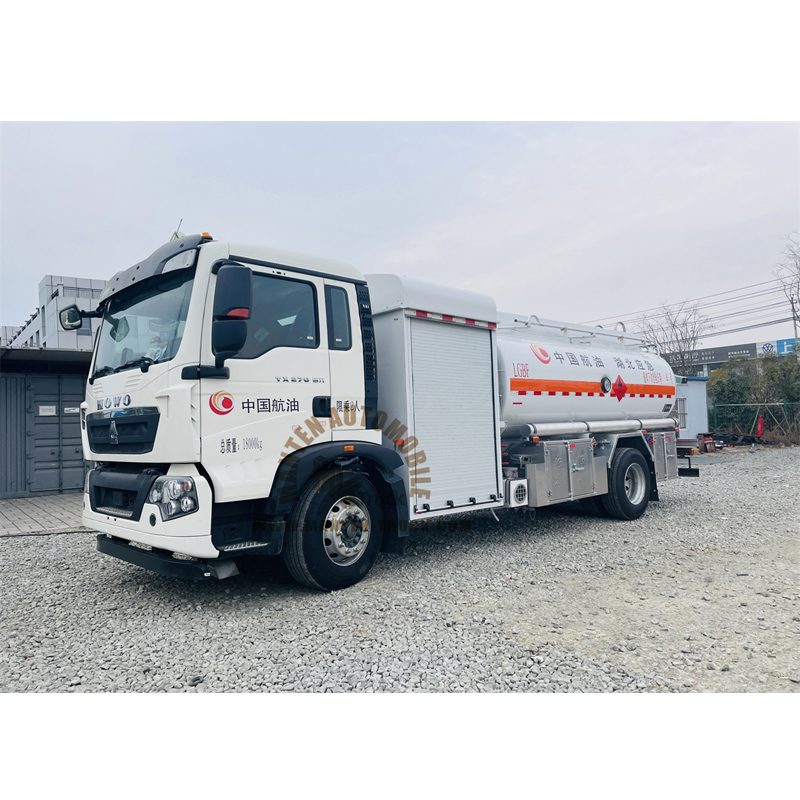

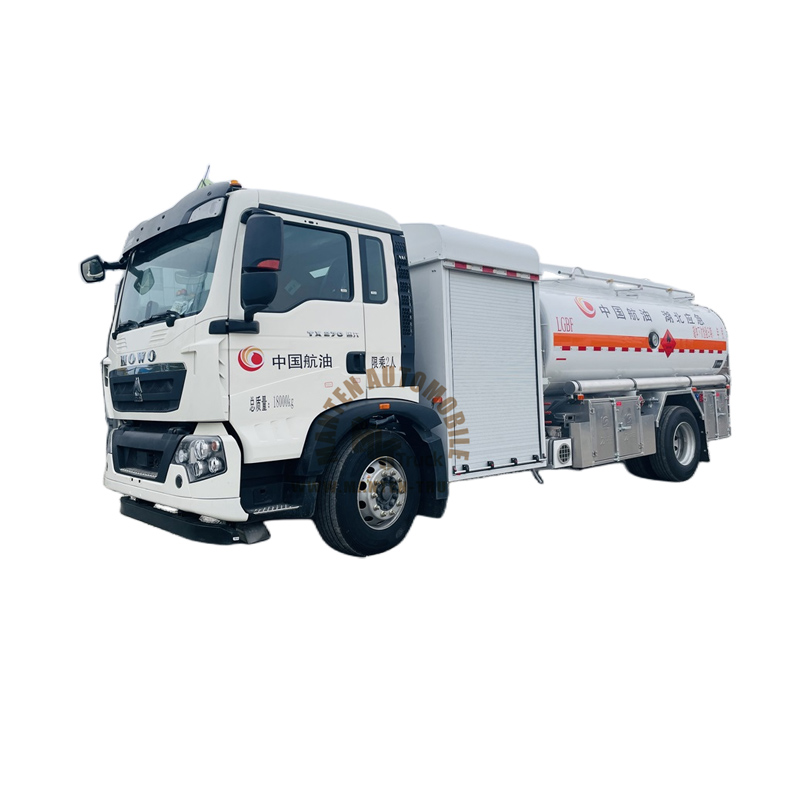

1. This Aircraft refueling truck adopts Sinotruk Howo chassis, The tank is square and round, with a volume of 14 cubic meters, a single compartment.
2. Tank material is aluminum alloy 5182, with one aluminum alloy European standard manhole on the tank top with built-in breathing valve, manual aluminum alloy guardrails on both sides of the tank top, equipped with aluminum alloy back ladders.
3. Function equippment:
One set of explosion-proof lamp inside the operation cabinet (aluminum alloy).
one set of electrostatic reel outside the operation cabinet.
Refueling pump: Hangzhou Weilong self-priming centrifugal pump.
Flowmeter: Hefei Jingda instrument with 0.2 accuracy, diameter of 50 waist wheel flow rate.
Filter separator: 7-core filtration (including 2 separation filters and 5 coalescence filters).
Gravity refueling method: 15m aviation kerosene special hose reel with aviation kerosene special gun.
Liquid level gauge: 10 inch aluminum alloy dial.
Operation control: integrated control system.
