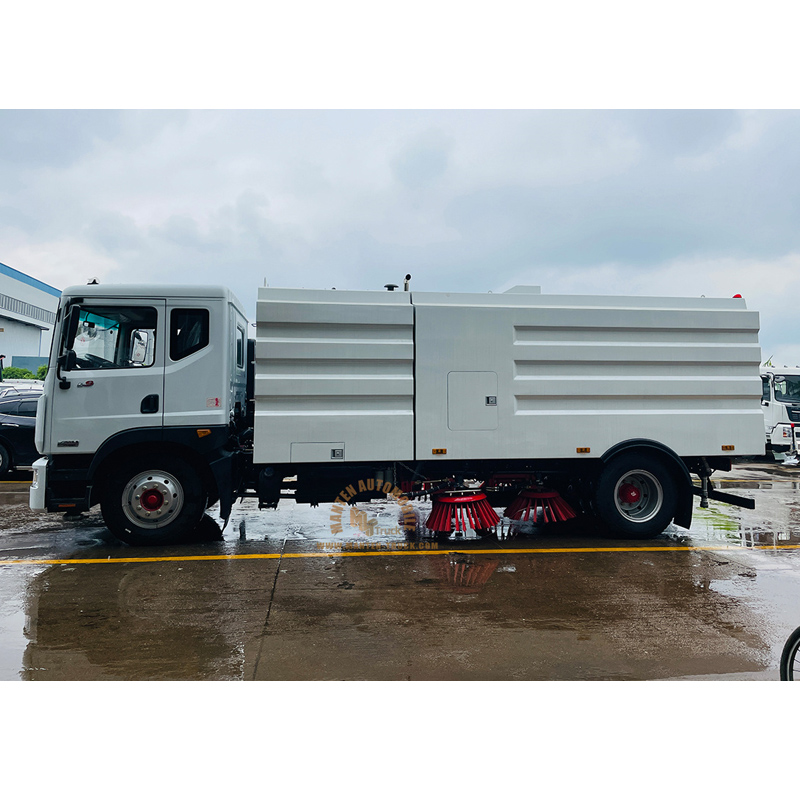

Name: Dongfeng 8 Tons Sweeper Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of Dongfeng 8 Tons Sweeper Truck

SPECIFICATION
Truck Specification
Product Name		12 tons 12000 liters dongfeng Road sweeper Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 860025003370mm
Chassis Specification
Cabin		dongfeng cabin, LHD/RHD, A/C
Drive type		4*2
wheelbase		4500 mm
Fuel type of engine		Diesel
Engine	Model	B17033 B190 33 Cummins engine Series
	Maximum horse power	170-190 hp
	Number of cylinders	4cylinders/6 cylinders
	Emission standard	Euro 2
Gear box	Type	8 forward & 1 rear
Tyres	Size	8.25R16
	Quantity	6+1 spare tire
Upper body specification
Working Performance	1. Sweeping efficiency 95%;
	2. Max suction size 120mm;
	3. Sweeping width 2.8-3.0m;
	4. Max cleaning capacity 60000 m2/h;
	5. Butterfly disc extend size ≥400mm;
	6. Sweeping speed 3-20km/h.
Deputy Engine System
Deputy engine model	B140 33 140hp
Fuel type	diesel
Tank System
Water tank	Material: stainless steel
	Volume: 4000L
Garbage tank	Material: stainless steel
	Volume: 10000L
	Discharging door opening angle: ≥45°
Hydraulic System
Type	electrical control
Main components	gear pump, hydraulic motors, hydraulic cylinders, solenoid valve
System pressure	16Mpa
Hydraulic oil tank capacity	60L
Oil temperature	60℃
Electrical System
Type	DC24V
Voltage	24V
Battery	24V
Spraying Water System
Main components	electric diaphragm pump, water filter, nozzle
Sweeping Device System
Type	centre installation 4pcs sweeping disc, hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response
Sweeping disc diameter	850mm
Sweeping disc-angle	forward 4-6°
	outword 4-7°
Sucking Disc System
Type	single suction, hydraulic control, spring suspension
Suction entrance diameter	200mm
