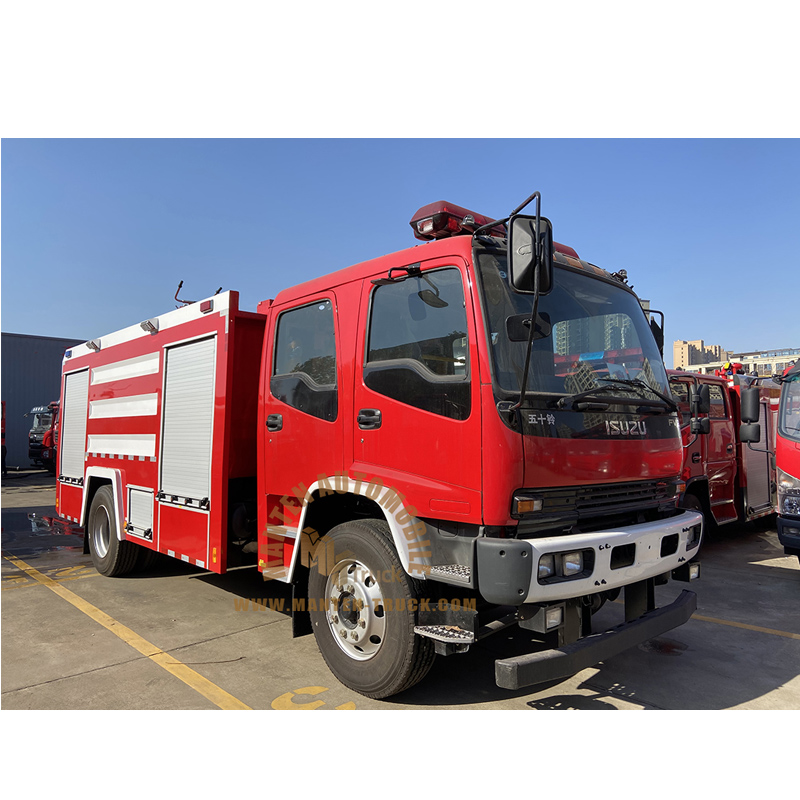

1. This ISUZU FVR 6000L fire fighting truck adopts ISUZU FVR chassis , 6,000 liters to 8,000 liters water tank, CB10/20 fire pump, PL24 fire monitor and fire fighting equipment.
2. This ISUZU FVR 6000L fire fighting truck could be equipped with different fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters.
3. This ISUZU FVR 6000L fire fighting truck could be equipped with different fire pump (CB10/40 low pressure pump or CB20.10/20.40 medium and low pressure pump ). The max flux is 2400 liters at 10 bar.
3. The water tank material of ISUZU FVR 6000L fire fighting truck can be Q235B carbon steel or stainless steel.
SPECIFICATION | ||
Truck Specification | ||
Product Name | ISUZU FVR 6000L fire fighting truck | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 8500*2500*3500mm | |
Chassis Specification | ||
Cabin | Isuzu FVR cabin, crew cabin, with A/C | |
Drive type | 4*2 | |
wheelbase | 4500mm | |
Fuel type of engine | Diesel | |
Engine | Model | 6HK1-TCL or 6HK1-TCH |
Maximum horse power | 240HP or 300HP | |
Number of cylinders | 6 | |
Emission standard | Euro 5 | |
Gear box | Type | ISUZU MLD, Manual, 6 forwards and 1 reverse |
Tyres | Size | 295/80R22.5 or 11.00R20 |
Quantity | 6+1 spare tire | |
Upper body specification | ||
Water tank and Foam tank | Capacity | 6,000 liters to 8,000 liters |
Tank Material | 5mm Q235 Carbon steel or stainless steel | |
Function | Equipped with crew cabin, can sit 2+4 firefighters. | |
Equipped with fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 60 meters. | ||
Equipped with (CB10/40 low pressure pump or CB20.10/20.40 medium and low pressure pump ). The max flux is 2400 liters at 10 bar. | ||
Could be equipped with fire fighting equipment like as fire gun, fire hose, high pressure DN25 hose reel or others. | ||
It can realize the long distance fire fighting. |
