Shacman 4x2 10ton Road Paving Bitumen Truck

1. The Shacman 10cbm asphalt distributor truck made by MANTEN owns excellent strong carring loading capacity, with flexible and light controllability.


2. Both manual and automatic control modes can be used to control each nozzle separately, so that the spraying width can be adjusted arbitrarily.


3. Vehicle-mounted rapid heating system (10-15 ℃/h) can improve heating efficiency and reduce construction auxiliary time, so that to ensure the temperature of sprinkling.


Specification Of Shacman 4x2 10ton Road Paving Bitumen Truck

SPECIFICATION
Truck Specification
Product NameShacman 4x2 10ton Road Paving Bitumen Truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 8500×2500×3050mm
Chassis Specification
CabinLHD/RHD, A/C
Drive type4x2
wheelbase4600mm
Fuel type of engineDiesel
EngineModelWeichai WP10.300E22
Maximum horse power300HP
Gear boxType9 forward & 1 rear
TyresSize12.00R20
Quantity6+1 spare tire
Upper body specification
Asphalt Tank Capacity10ton
Static insulation performance index≤12℃/8H
Spraying Width4500mm
Asphalt Spraying Rate0.2-4.0L/m2
Nozzles Number36pcs
Spraying error±2%
BurnerG20, Italian RIELLO
Hydraulic Motor of Asphalt pump05-130-BD31, TILORMS
PLC Control SystemCLW-48-01, SIEMENS
Hydraulic PumpCBQ563-L, CHANGYUAN
Heat-transfer Oil PumpRY25-25-160, BOTOU
Proportional ValveEFBG-03-160-HF, TAIWAN
Asphalt PumpQGB950, SHANGGUI
Generator6KW Petrol Generator
OthersGermany Vehicle Speed Sensor, Germany Pump Rotation Speed Sensor, Chinese famous Temperature Sensor


Trucks

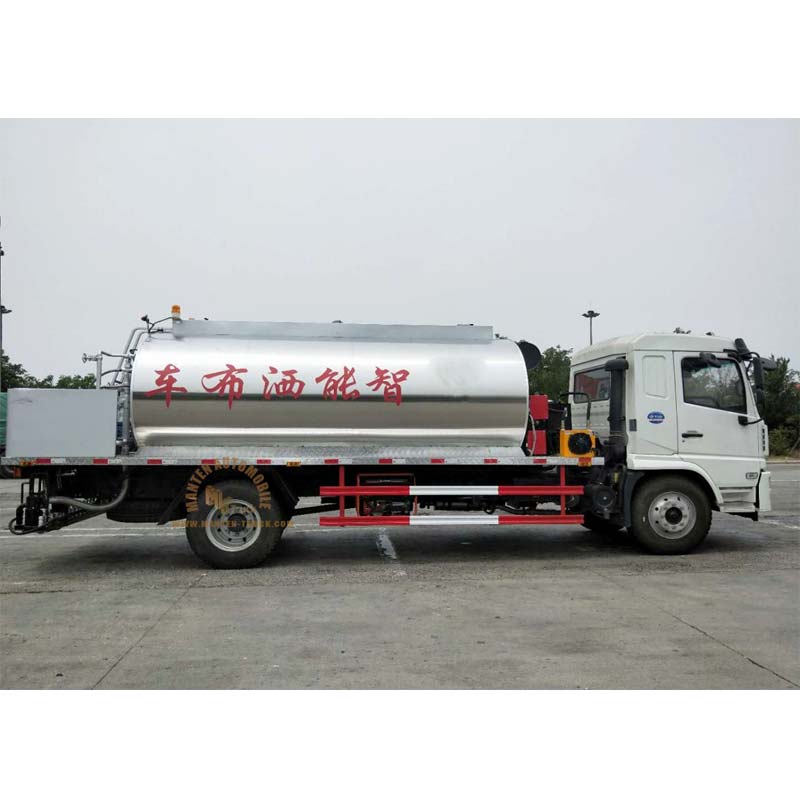

Shacman 4x2 10ton Road Paving Bitumen Truck Gallery

bitumen sprayer truck for sale
asphalt sprayer truck
shacman 4x2 10ton road paving bitumen truck
