Forland 4m³ Side Loader Garbage Truck

1. Forland 4m³ Side loader garbage truck adopts Forland chassis,75KW engine power, 5-speed transmission, 7.00R16 tires.


2. Truck body: light weight design, large loading capacity, manganese steel is used instead of traditional carbon steel, and its self weight is more than 20% lighter than that of similar truck.


3. Hydraulic operation system: electromagnetic reversing valve imported from Italy, which with small volume, long service life, reliable performance and convenient operation advantage. The opening of the rear door and the overturning of the compartment are all operated automatically.



Specification of Forland 4m³ Side Loader Garbage Truck

SPECIFICATION
Truck Specification
Product NameForland 4m³ Side loader garbage truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 6000*2150*2550mm
Chassis Specification
CabinForland cabin, with A/C
Drive type4x2
wheelbase3300mm
Fuel type of engineDiesel
EngineModel/ManufacturerYUNNEI/QUANCHAI
Maximum horse power50/75KW
Number of cylinders4
Emission standardEuro 3/4/5/6
Gear boxType5 forward & 1 rear
TyresSize7.00R16 Radial tires
Quantity6+1 spare tire
Upper body specification
Garbage BinCapacity4m³
Tank Material4mm Carbon Steel for Garbage Bin Body
Ways of loadingSide bucket lifting system
Control systemone control Panel on the back, one control system in back of cabin
Dispensing systemEquipped with air-tight dustbin, hydraulic system and operating system.
Automatic loading, compressing and discharging, all handled by 1 person
Sewage water collection tank to avoid any pollution during handling.
Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
Electrical Control Panel for compacting system.
Cycling time<14~18s


Trucks

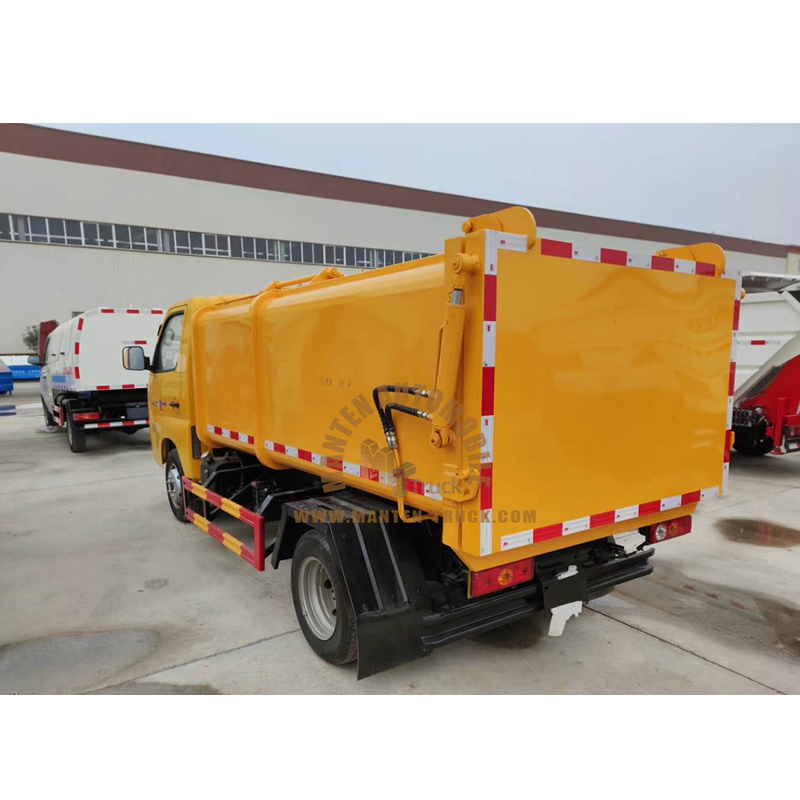

Forland 4m³ Side Loader Garbage Truck Gallery
