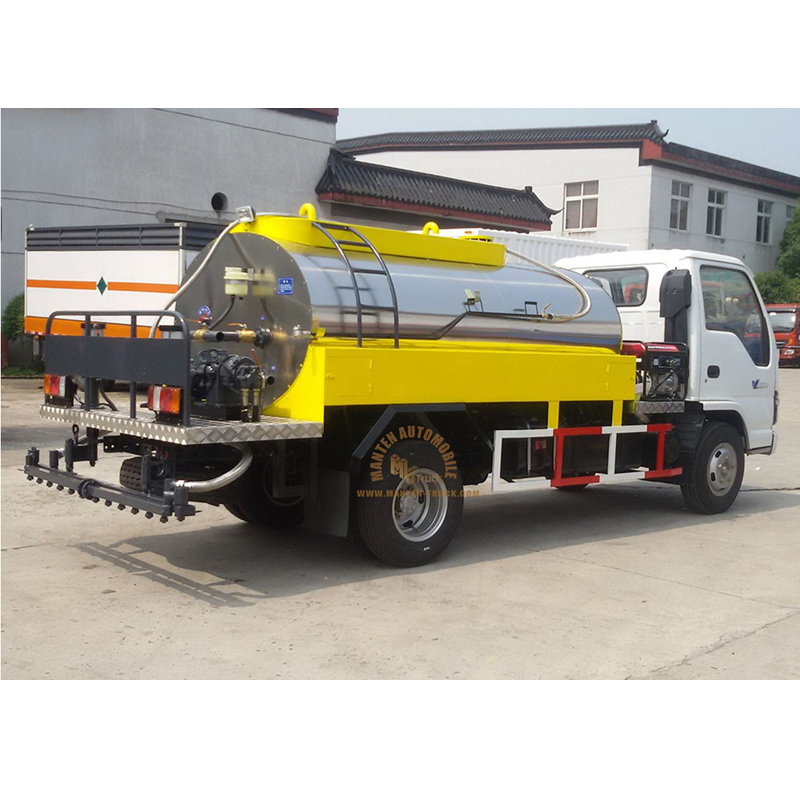

ISUZU 3CBM Asphalt Distributor Truck

1. The ISUZU 3CBM asphalt distributor truck adopts original ISUZU chassis to ensure the quality,and the small truck body benefits it working in space limited working sites.


2. The truck adopts the advanced high-viscosity asphalt pump, which can not only pump the external asphalt into the tank to realize "self-priming" function, but also pump the out asphalt.


3. All the heat pipes are equipped with a heat insulation layer to reduce heat dissipation and avoid scald of operators.


Specification of ISUZU 3CBM Asphalt Distributor Truck

SPECIFICATION
Truck Specification
Product NameISUZU 3cbm Asphalt Distributor Truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 6300×2080×2400mm
Chassis Specification
CabinISUZU 100P, LHD/RHD, A/C
Drive type4x2
wheelbase3360 mm
Fuel type of engineDiesel
EngineModelISUZU 4JB1CN
Maximum horse power98HP
Gear boxType5 forward & 1 rear
TyresSize7.00R16
Quantity6+1 spare tire
Upper body specification
Asphalt Tank Capacity3000L
Static insulation performance index≤12℃/8H
Spraying Width4500mm
Asphalt Spraying Rate0.2-2.5L/m2
Nozzles Number29pcs
Spraying error±2%
BurnerG10, Italian RIELLO, (100×10³kcal/h)
Hydraulic Motor of Asphalt pump05-90-BD31, TILORMS
PLC Control SystemCLW-48-01, SIEMENS
Hydraulic PumpCBQ540-L, TIANJIN
Heat-transfer Oil PumpRY25-25-160, BOTOU
Proportional ValveEFBG-03-160-HF, TAIWAN
High-viscosity asphalt pumpQGB270, SHANGGUI
Generator24V Inverter
OthersGermany Vehicle Speed Sensor, Germany Pump Rotation Speed Sensor, Chinese famous Temperature Sensor
