Top loading: 4mm stainless steel trash can; stainless steel water tank; stainless steel high-pressure pipeline; German controller; American sensor; rear arrow light; oil, trash and water tanks are equipped with anti-overflow or low-level alarm devices; indoor monitoring of reversing and cleaning status Anti-collision automatic protection device for reversing; maintenance of safety protection device; high-tech wear-resistant engineering spacer is used for the rotating mechanism of the brush arm, without butter; 20m high-pressure washing reel. CAN bus integrated motion controller, one-key computer control.
SPECIFICATION | ||
Truck Specification | ||

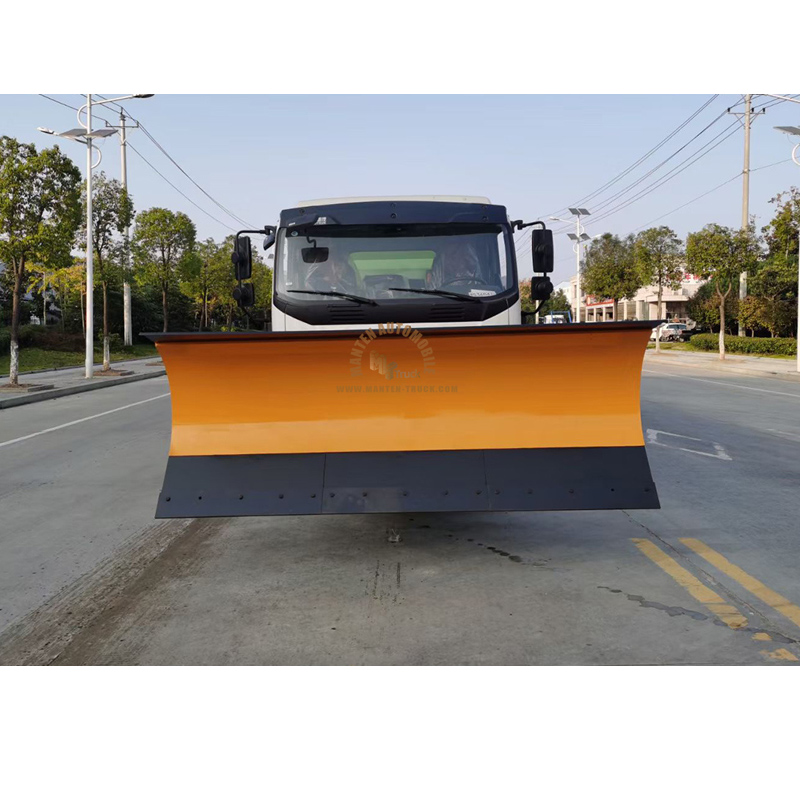

Product Name | 10 tons 10000 liters howo Road cleaning sweeper with snow plow | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 7400*2300*2870mm | |
Chassis Specification | ||
Cabin | howo 2080 cabin ,LHD/RHD, A/C | |
Drive type | 4*2 | |
wheelbase | 4500 mm | |
Fuel type of engine | Diesel | |
Engine | Model | YC4E140/160 Series |
Maximum horse power | 140-160 hp | |
Number of cylinders | 4 | |
Emission standard | Euro 2 | |
Gear box | Type | 6 forward & 1 rear |
Tyres | Size | 8.25R16 |
Quantity | 6+1 spare tire | |
Upper body specification | ||
High pressure cleaning/washing system | Water cleaning speed: 3-20 km/h | |
water cleaning width: 3-3.5 meters | ||
Water pressure of cleaning system:10- 12mpa | ||
Flux of water pump: 115/154L/min | ||
Working Performance | 1. Sweeping efficiency 95%; | |
2. Max suction size 110mm; | ||
3. Sweeping width 3.0m; | ||
4. Max cleaning capacity 60000~7000 m2/h; | ||
5. Butterfly disc extend size ≥400mm; | ||
6. Sweeping speed 3-20km/h | ||
Deputy Engine System | ||
Deputy engine model | ISUZU 64kw OR Cummins 140kw diesel engine | |
Fuel type | diesel | |
Tank System | ||
Water tank | Material : stainless steel | |
Volume: 7000 L | ||
Garbage tank | Material : stainless steel | |
Volume : 3000L | ||
Discharging door opening angle : ≥45° | ||
Hydraulic System | ||
Type | electrical control | |
Main components | gear pump, hydraulic motors, hydraulic cylinders, solenoid valve | |
System pressure | 16Mpa | |
Hydraulic oil tank capacity | 60L | |
Oil temperature | 60℃ | |
Electrical System | ||
Type | DC24V | |
Voltage | 24V | |
Battery | 24V | |
High pressure Water System | ||
Type | Plunger pump | |
Model | Germany PT36 PT40 PF36 and relevant series | |
Pressure of system | 10 MPa | |
Running speed | 1150r/min | |
Water pressure | 7 MPa | |
Other components | hydraulic control high pressure ball valve, water filter, high pressure washing nozzle | |
Spraying system | electrical diaphragm pump, water filter, nozzle etc. | |
Sweeping Device System | ||
Type | centre installation 2pcs sweeping disc,hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response | |
Sweeping disc diameter | 850mm | |
Sweeping disc- angle | forward 4-6°, | |
outword 4-7° | ||
Sucking Disc System | ||
Type | single suction, hydraulic control, spring suspension | |
Suction entrance diameter | 180-200mm | |
Suction width | 1800-2400 mm |
