beiben truck 6 6 off road fuel vehicle

Beiben truck 6x6 Off Road Fuel Vehicle

1. This Off road fuel truck adopts Beiben truck chassis ,with 6X6 left hand drive.


2. Off road performance: Weichai 380 horsepower diesel supercharged engine, steel radial off-road tread widened tires, double frame, double load capacity, and large fuel tank can meet the requirements of 1300km without refueling.


3. Tank configuration: The tank is made of carbon steel Q235B, with a thickness of 4mm, a high-power gear oil pump, and optional fuel dispenser, flowmeter and other metering devices. It is applicable to dry mountain areas and desert areas. It can be used as a temporary gas station. It can be stored separately. It can be used to pack different oil products and chemicals. The tank body is characterized by high strength, stable center of gravity, and safe transportation.


Specification of Beiben truck 6x6 Off Road Fuel Vehicle

Truck Specification
Product NameOff Road Beiben truck 6X6 fuel truck
Truck ManufacturerMANTEN GROUP
Chassis Specification
Chassis BrandBeiben truck
Drive type6x6
wheelbase4450+1450mm
Fuel type of engineDiesel
EngineBrandWP10.380E32
Maximum horse power380hp
Emission standard3
Gear boxTypeGearbox 12JS200T
TyresSize12.00R20

Quantity10
Upper body specification
Volume120000L
Tank material and thicknessPart of the tank material、thickness:Q235B carbon steel, 4mm
Head material and thickness: Q235B carbon steel, 5mm
Manhole coverType: Aluminum European standard breathing valve with tank port
Oil pump and pipelineOil pump, seamless steel pipe;
Pump inlet and outletSpecification: choose one of DN50/DN65, aluminum alloy
Refueling reel and fueling gun15m automatic return reel nozzle
Fuel dispenserfuel dispenser (with ticketing function)


Trucks

Beiben truck 6x6 Off Road Fuel Vehicle Gallery

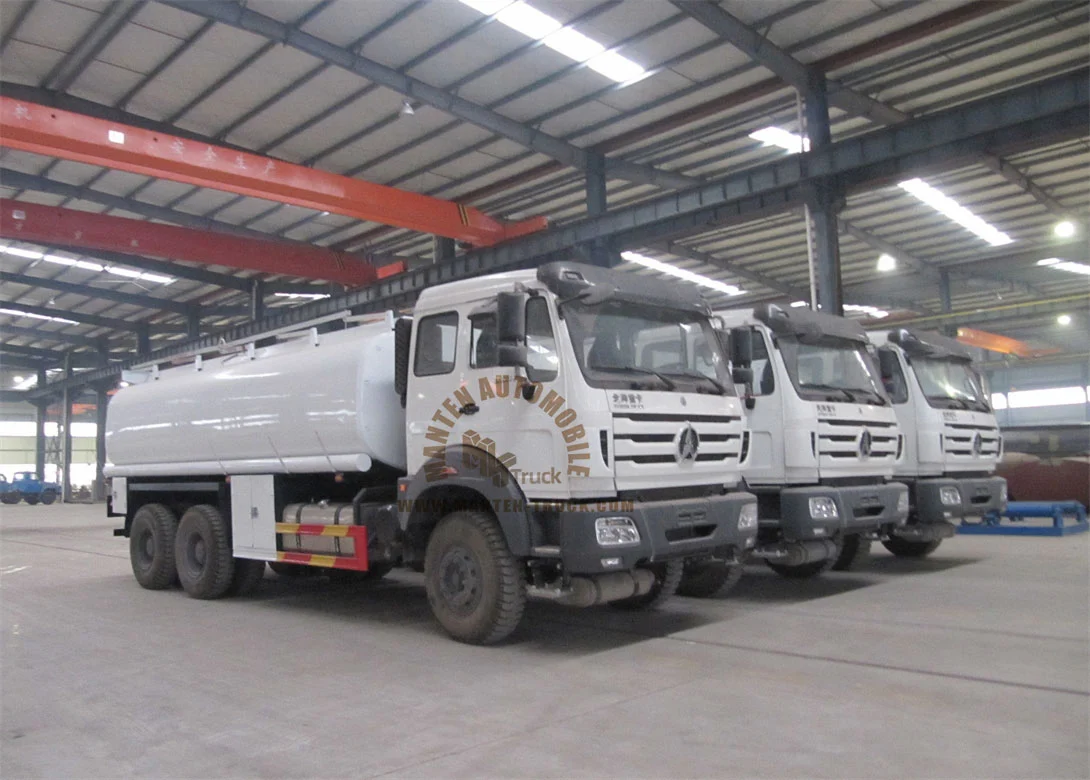

beiben truck 6 6 off road fuel vehicle2
beiben truck 6 6 off road fuel vehicle5
beiben truck 6 6 off road fuel vehicle3
beiben truck 6 6 off road fuel vehicle4
beiben truck 6 6 off road fuel vehicle1
beiben truck 6 6 off road fuel vehicle6
