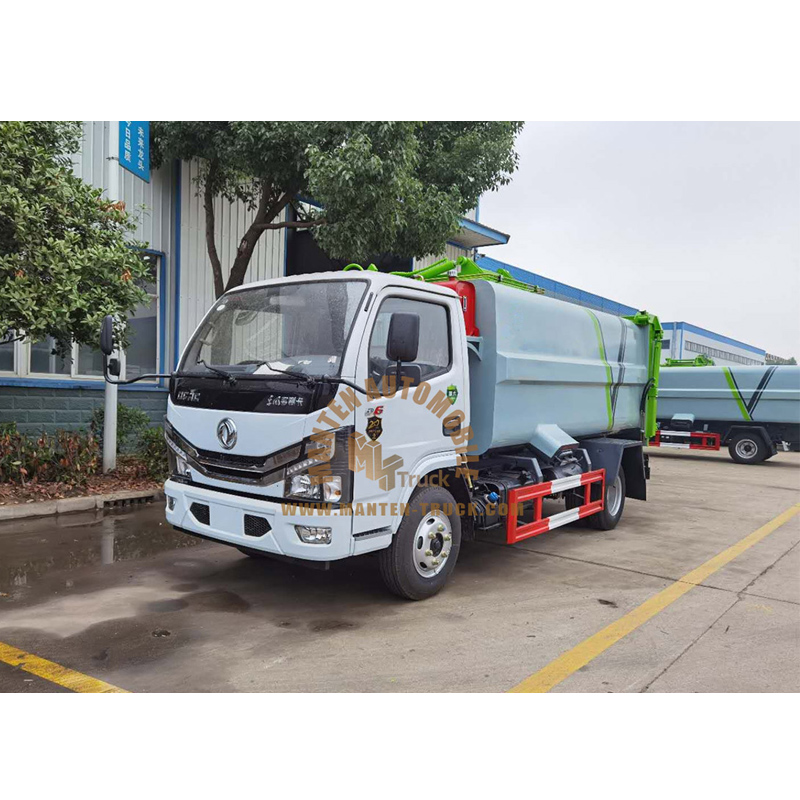

Dongfeng 7 Cubic Meter Side Dump Garbage Truck

1. Dongfeng 7 Cubic Meter Side Dump Garbage truck adopts Dongfeng chassis,120HP engine power,5-speed transmission,7.00R16 tires.


2. Truck body: light weight design, large loading capacity, manganese steel is used instead of traditional carbon steel, and its self weight is more than 20% lighter than that of similar truck.


3. Hydraulic operation system:electromagnetic reversing valve imported from Italy, which with small volume, long service life, reliable performance and convenient operation advantage. The opening of the rear door and the overturning of the compartment are all operated automatically.




Specification of Dongfeng 7 Cubic Meter Side Dump Garbage Truck

SPECIFICATION
Truck Specification
Product NameDongfeng 7 Cubic Meter Side Dump Garbage truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 6000*2150*2550mm
Chassis Specification
CabinDongfeng Duolika cabin ,with A/C
Drive type4x2
wheelbase3300mm
Fuel type of engineDiesel
EngineModelCHAOCHAI /YUCHAI/QUANCHAI
Maximum horse power120HP/140HP
Number of cylinders4
Emission standardEuro 3/4/5/6
Gear boxType5 forward & 1 rear
TyresSize7.00R16 Radial tires
Quantity6+1 spare tire
Upper body specification
Garbage BinCapacity7 m3
Tank Material4-5mm Carbon Steel for Garbage Bin Body
Ways of loadingSide bucket lifting system
Control systemone control Panel on the back ,one control system in back of cabin
Dispensing systemEquipped with air-tight dustbin, hydraulic system and operating system.
Automatic loading, compressing and discharging, all handled by 1 person
Sewage water collection tank to avoid any pollution during handling.
Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
Electrical Control Panel for compacting system.
Cycling time<14~18s
