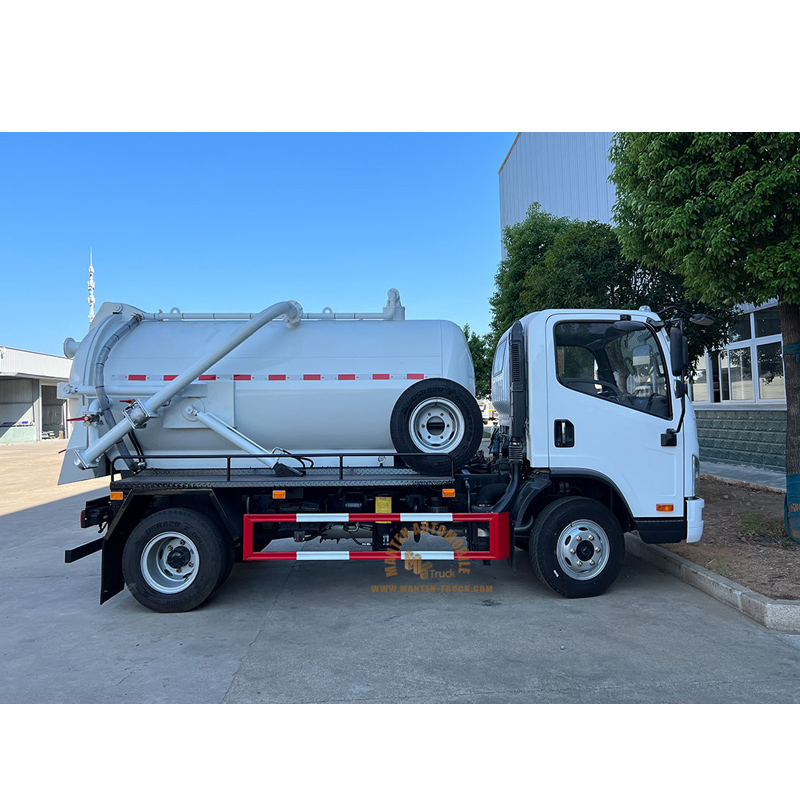

Name: Faw 5000 Liters Vacuum Tank Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 5000 Liters Faw Vacuum Tank Truck

SPECIFICATION
Truck Specification
Product Name		5000 liters faw vacuum suction Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 599521002870mm
Chassis Specification
Cabin		FAW Tiger V cabin ，LHD/RHD, A/C
Drive type		4*2
wheelbase		3360mm
Fuel type of engine		Diesel
Engine	Model	CA498E3-12
	Maximum horse power	120 hp
	Number of cylinders	4
	Emission standard	Euro 2
Gear box	Type	Manual type, 5 forward & 1 rear
Tyres	Size	7.50R16
	Quantity	6+1 spare tire
Upper body specification
Sewage Tanker	Capacity	5cubic meters (5000 litters)
	Material	High tension steel, 5mm Tank body and End Plate,
Dumping System	Middle Tipper	Hydraulic Controlled Rear Door and Middle lifting.
	Rear Door	Hydraulic controlled with sewage drain pipe
Vacuum Pump	High Efficiency China brand vacuum pump, water cooling model vacuum pump or other customized one
Other Parts	Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device
Other specification required from buyer.	Steel fabricated hose box mounted on side of the tank;
	Two lengths of 3’’x6 meters long suction hose;
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min,
	Effective suction range ≥ 8,
	Max vacuum degree ≤ 15 Kpa,
	dump angle ≥ 45
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
	Cylinder vacuum tank can be lifted hydraulically to
	40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel.
	Vacuum pump : Italy or Spain vacuum pumps.
	Anti-rust coating inside tank
