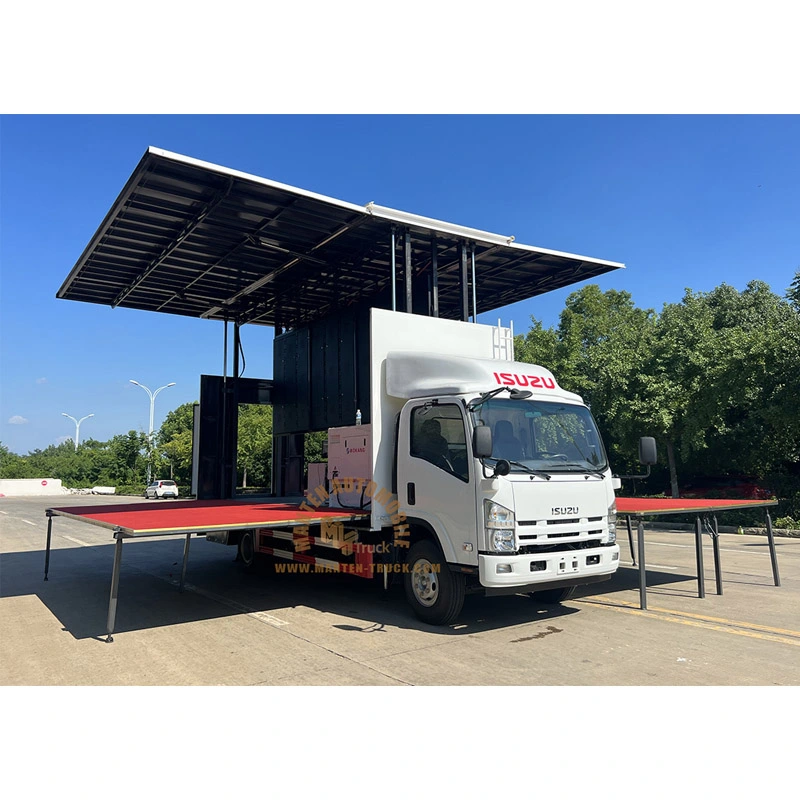

Specification of ISUZU 4×2 190HP Mobile Stage Truck

TECHNICAL SPECIFICATION
Main specification	Overall dimension(LWH)	about 7800×2400×3000(mm)
	Cabin	ISUZU Frr 700P Single row cab with air conditioner
	Drive model	4×2
	Gross weight	9975(Kg)
	passenger	2~3person
	Max Speed	110(km/h)
Chassis	Chassis Model	QL1100A8MAY
	Wheel Base（mm)	4475mm
	Front/rear Overhang （mm)	1110/2365(mm)
	Transmission	ISUZU MLD 6-speed transmission
	Approach/Departure Angle (℃)	16/12(°)
	Tire size	235/75R17.5
	Front axle	4T
	Rear axle	7T
	Emission standard	Euro 5
	Steering	Left hand drive
Engine	Brand	ISUZU
	Model	4HK1-TC51
	Horse Power	190HP
	Max Torque(N.m )	510
	Fuel type	Diesel
	Displacement(L)	5.193L
Body Parameters
Middle LED Screen Dimension	P5 screen : 5120*1920=10m2
Box	Double sided expansion	Main stage size：8600*4000=35m3
		Auxiliary stage size：8000*1800
	5cm composite steel frame box, wood floor;
generator	Equipped with 15kw Mute Generator
Security system	two fire extinguishers
Color	According to the needs of customers
Anti-overflow devices	With primary and secondary anti-overflow devices
Pressure safety valve	With a positive and negative pressure relief valve
Tank Tipping angle(°)	More than 45
Rear door	Open and closed by hydraulic cylinders
Standard configuration	sub frame,vacuum sewage tank,hydraulic cylinder for unloading device,pressure gauge,suction hose,connected device,observation tube, hydraulic suite,rear door hydraulic opening，rear cover with two manual locking devices，with platform and handrail on both sides of the tank
