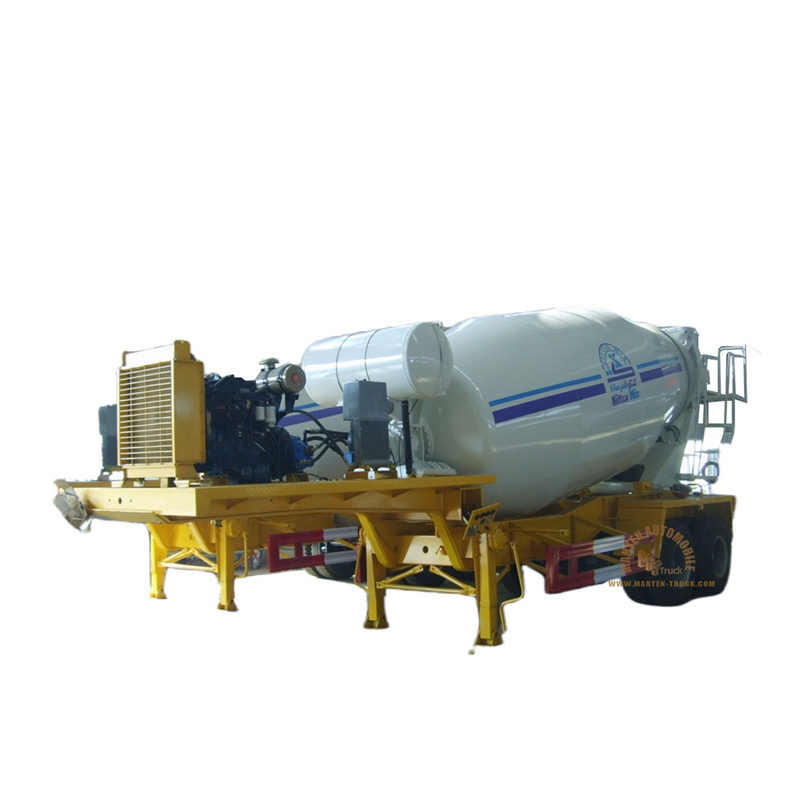

Name: 3-axles Concrete Mixer Trailer
Brand: Hubei Manten Automobile Co., Ltd.

Specification of 3-axles Concrete Mixer Trailer

SPECIFICATION
Truck Specification
Product Name		3-axles Concrete Mixer Trailer
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 1100024953880mm
Chassis Specification
Chassis & Main Beam		Skeletal Chassis with special designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.
Axles		3-axles, 16Ton
Suspension		10pcs leaf spring mechanical suspension
Landing Gear		JOST heavy duty landing gear
Tire brand		11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5
Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Tank specification
Capacity		10,12,14CBM
Mixing Tanker Sloping Angle		14, 12,10 degree
Mixing Tanker Revolving Speed		12-20 (r/min)
Key Accessories
Diesel Engine		TD226B-6, Weichai 127KW
Hydraulic Pump		ACA6023, EATON
Hydraulic Motor		HHD6033, EATON
Reducer		PMB7BSP, PMP
