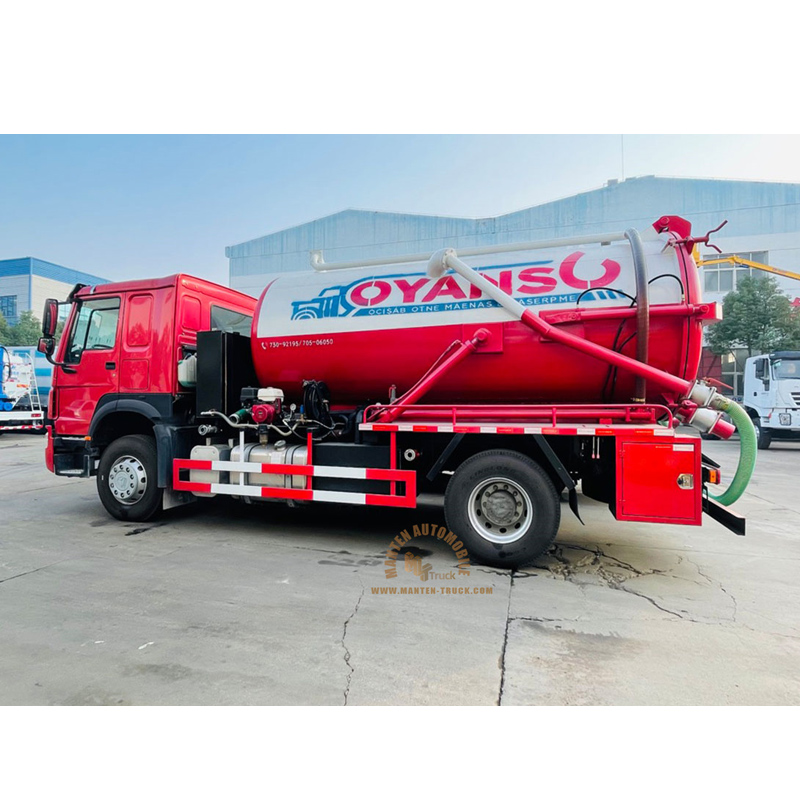

Name: Sinotruk Howo 15 Tons Sewage Suction Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 15 M3 Sinotruk Howo Vacuum Tank Truck

SPECIFICATION
Truck Specification
Product Name		15000Liters Sinotruk Howo vacuum tank Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 1000025503270mm
Chassis Specification
Cabin		HW76，LHD, A/C
Drive type		4*2
wheelbase		4600mm
Fuel type of engine		Diesel
Engine	Model	WD615.62 WD615 87
	Maximum horse power	266-290 hp
	Number of cylinders	6
	Emission standard	Euro 2
Gear box	Type	10 forward &2 rear
Tyres	Size	295/80R22.5
	Quantity	6+1 spare tire
Upper body specification
Sewage Tanker	Capacity	15cubic meters (15000 litters)
	Material	High tension steel, 5mm Tank body and End Plate,
Dumping System	Middle Tipper	Hydraulic Controlled Rear Door and Middle lifting.
	Rear Door	Hydraulic controlled with sewage drain pipe
Vacuum Pump	High Efficiency China brand vacuum pump, water cooling model vacuum pump or other customized one
Other Parts	Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device
Other specification required from buyer.	Steel fabricated hose box mounted on side of the tank;
	Two lengths of 3’’x6 meters long suction hose;
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min,
	Effective suction range ≥ 8,
	Max vacuum degree ≤ 15 Kpa,
	dump angle ≥ 45
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
	Cylinder vacuum tank can be lifted hydraulically to
	40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel.
	Vacuum pump : Italy or Spain vacuum pumps.
	Anti-rust coating inside tank
