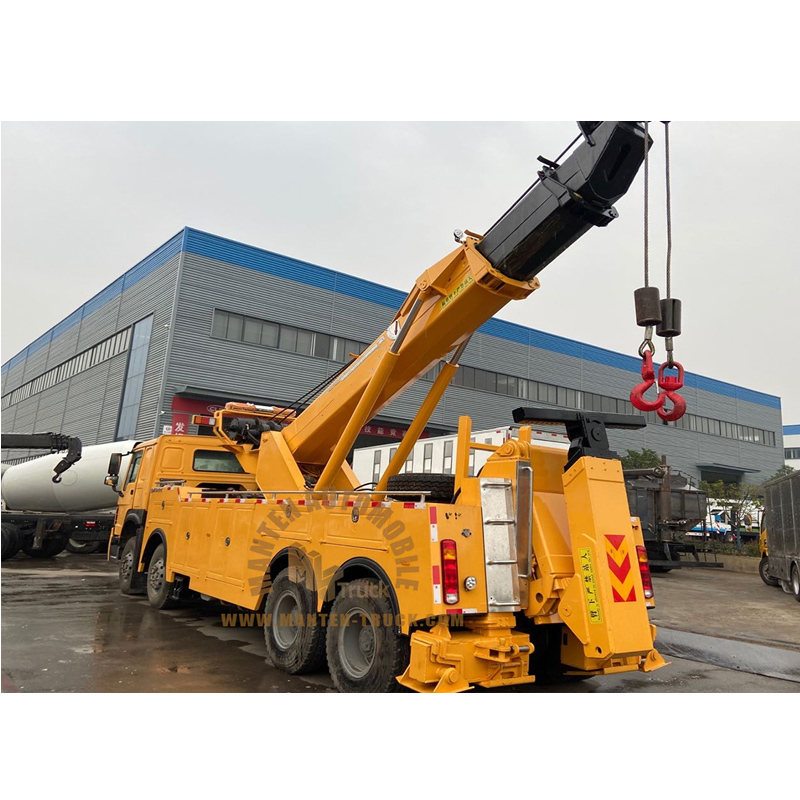

Name: HOWO 50ton Rotator Tow Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification of HOWO 50ton Rotator Tow Truck

SPECIFICATION
Truck Specification
Product Name		Howo 50ton rotator tow truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 1100025003500mmmm
Chassis Specification
Cabin		HOWO 76 cabin, with air conditioner
Drive type		8*4
wheelbase		1800+4600+1400mm
Fuel type of engine		Diesel
Engine	Model	WD619.47
	Maximum horse power	371hp
	Number of cylinders	6
	Emission standard	Euro 2
Gear box	Type	MANUAL, 10 forwards and 2 reverse
Tyres	Size	315/80R22.5 18PR/315/80R22.5 16PR,295/80R22.5,12R22.5,12.00R20 16PR,11.00R20,12.00-20 16PR,11.00-20
	Quantity	12+1 spare tire
Upper body specification
Platform	Standard configuration	With three section hexagonal arm( 360° continuous rotate), a supporting section arm mechanism (hydraulic cylinder) and ITALY valves. With 2 units 15ton towing winch device and 45 meters steel rope.
Function	Equipped with hydraulic lifting mechanism (winch).
	Equipped with supporting arm mechanism (hydraulic cylinder).
	Equipped with luffing mechanism (lifting boom, hydraulic cylinder).
	Equipped with manual and automatic control.
