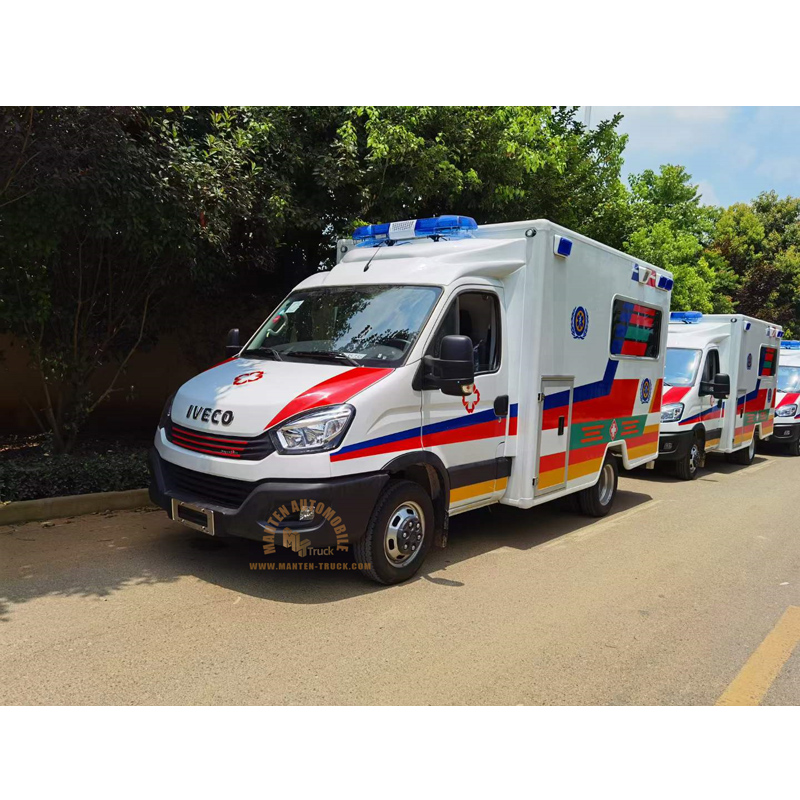

Name: Iveco Negative Pressure Ambulance
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of Iveco Negative Pressure Ambulance

Wheelbase(mm)	3310	Wheel tread F/R(mm)	1670/1670
Overall dimensions (mm)	5655×2080×2470	Tires	215/75R16LT
Dimension of Patient's	3260×1820×1500	Brake System	four wheels disc brake,
compartment(mm)	3260×1820×1500	Brake System	power-assisted brake
Complete vehicle curb mass:(kg)	3180	Max. speed (Km/h)	135
Enging	SOFIM8142.43S5	Fuel type	Diesel, Petrol available
Displacement (ml.)	2798	Emission standard	Euro V
Maximum power(kw)	100	Gearbox	manual 5 speed, 5 forward gear, 1 reverse gear
GVW (kg)	3550	F / R Suspension(mm)	1000/1345
Safety system	ABS, Airbag for driver, parking sensor, GPS, parking camera, DVD
Standard configuration of vehicle	1.Electric side mirrors
	2.Power window
	3.Radio (with CD)
	4.Hand-free Intercom system between driver's cab and Patient's compartment
	5.2 seats in driver's cab
	6.Single upward opening rear door
	7.Foot pedal in rear door
ICU type	1. Long line of rescue warning lights and all around flashing lights; 2. Automatic carriage stretcher; 3. Fold stretcher; 4. Oxygen supply system: oxygen cylinder and oxygen cylinder cabinet, quick interface; 5. Integral medical cabinet on the left; 6. Work seat, escort seat; 7. one sterilamp; 8. two infusion hooks; 9. one 1000W inverter; 10. External power supply system; 11. Ventilation fan; 12. two 12v lighting lamps; 13. two 220V power sockets; 14. one set of power control panel; 15. Middle partition with observation window; 16. flushable medical wear-resisting floor; 17.One waste bin; 18. Car body advertising and ambulance identification; 19. air conditioning and heater.














Equipment	Negative pressure patient compartment/transit compartment
