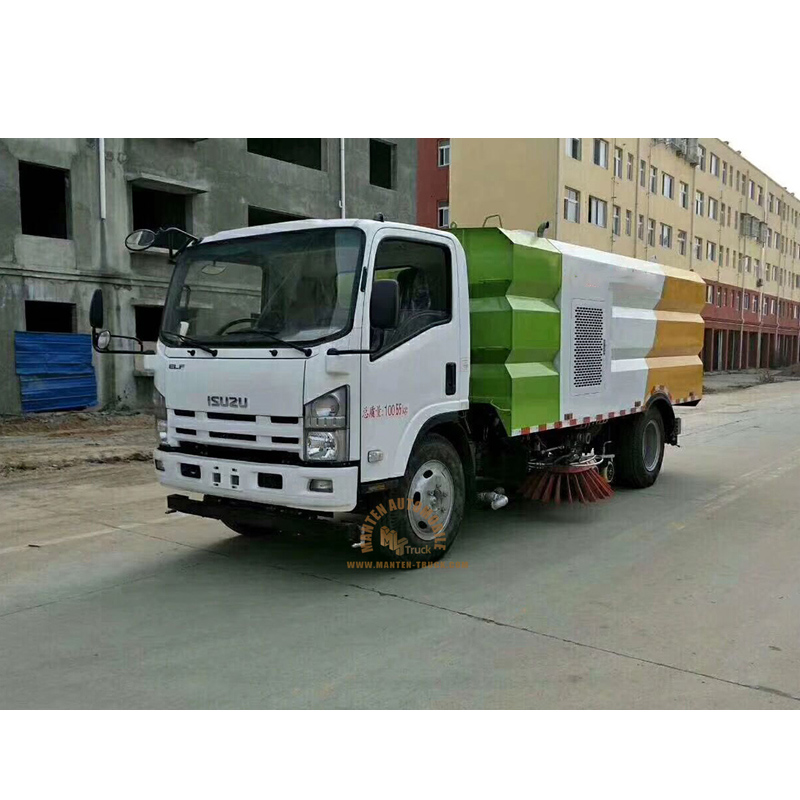

Name: Isuzu 7 Cbm Road Cleaning Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 6tons 7 M3 Isuzu Road Cleaning Truck

SPECIFICATION
Truck Specification
Product Name		7 tons 7000 liters Road cleaning Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 740023002870mm
Chassis Specification
Cabin		NPR cabin ，LHD/RHD, A/C
Drive type		4*2
wheelbase		4475 mm
Fuel type of engine		Diesel
Engine	Model	4HK1-TC Series
	Maximum horse power	190 hp
	Number of cylinders	4
	Emission standard	Euro 4/EURO 5
Gear box	Type	5 forward & 1 rear
Tyres	Size	7.00R16
	Quantity	6+1 spare tire
Upper body specification
High pressure cleaning/washing system	Water cleaning speed: 3-20 km/h
	water cleaning width: 3-3.5 meters
	Water pressure of cleaning system:10- 12mpa
	Flux of water pump: 115/154L/min
Working Performance	1. Sweeping efficiency 95%;
	2. Max suction size 110mm;
	3. Sweeping width 3.0m;
	4. Max cleaning capacity 60000~7000 m2/h;
	5. Butterfly disc extend size ≥400mm;
	6. Sweeping speed 3-20km/h
Deputy Engine System
Deputy engine model	ISUZU 64kw OR Cummins 140kw diesel engine
Fuel type	diesel
Tank System
Water tank	Material : stainless steel
	Volume: 4500L-9000-13000 L
Garbage tank	Material : stainless steel
	Volume : 3000L-7000-9000 L
	Discharging door opening angle : ≥45°
Hydraulic System
Type	electrical control
Main components	gear pump, hydraulic motors, hydraulic cylinders, solenoid valve
System pressure	16Mpa
Hydraulic oil tank capacity	60L
Oil temperature	60℃
Electrical System
Type	DC24V
Voltage	24V
Battery	24V
High pressure Water System
Type	Plunger pump
Model	Germany PT36 PT40 PF36 and relevant series
Pressure of system	10 MPa
Running speed	1150r/min
Water pressure	7 MPa
Other components	hydraulic control high pressure ball valve, water filter, high pressure washing nozzle
Spraying system	electrical diaphragm pump, water filter, nozzle etc.
Sweeping Device System
Type	centre installation 2pcs sweeping disc,hydraulic motor drive, right front can be independently controlled, with functions of avoiding collision response
Sweeping disc diameter	850mm
Sweeping disc- angle	forward 4-6°,
	outword 4-7°
Sucking Disc System
Type	single suction, hydraulic control, spring suspension
Suction entrance diameter	180-200mm
Suction width	1800-2400 mm
