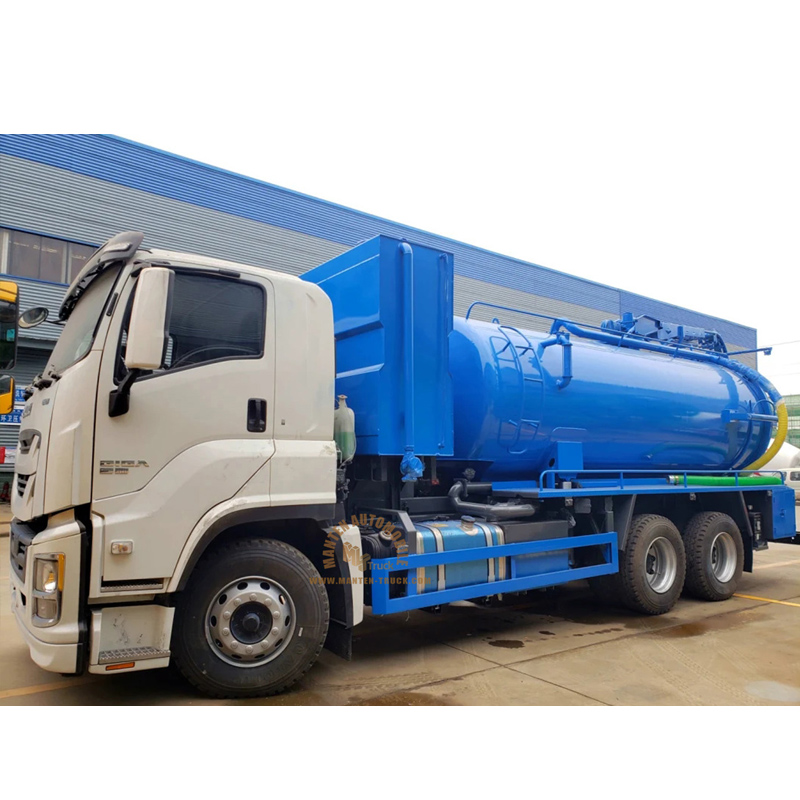

Name: Isuzu Giga 20m³ Septic Cleaning Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 20m³ Isuzu Septic Cleaning Truck

SPECIFICATION
Truck Specification
Product Name		20000Liters ISUZU sewer cleaning Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 1000025503270mm
Chassis Specification
Cabin		GIGA, LHD, A/C
Drive type		6*4
wheelbase		4650+1300mm
Fuel type of engine		Diesel
Engine	Model	6HK1-TC/6UZ1-TCG/6WG1-CG
	Maximum horse power	300-380-420-460hp
	Number of cylinders	6
	Emission standard	Euro 2
Gear box	Type	10 forward &2 rear
Tyres	Size	12.00R20
	Quantity	10+1 spare tire
Upper body specification
High-pressure Water Pump	Model	HPP/MEC/ URACAKD708G
	Pressure	21MPa
	Flow	212L/min
Clean Water Tank	Structure	Combination of Three Stainless Steel Tank
Clean Water Tank	Volume	8m³
Reel	Power	Hydraulic
	Speed	0~30m/min
	Length	80m
	Diameter	φ150mm~φ800mm
Vacuum Pump	Model	JUROPPVT200M
	Flow	1280m³/h
	Suction Range	≥6m
Sewage Tank	Structure	Oval, Opening at the Back
	Volume	12m³
	Tipping Angle	≥45°
Rotation Arm	Control	Up & Down, Left & Right, Extention & Retract
	Vertical Angle	-3~40°
	Rotation Angle	180°
	Extention Rangle	1300mm
Sewage suction pipe	Material	PVC
	Diameter	5
	Length	6m
	dump angle ≥ 45
Standard configuration	Equipped with Inspect window, discharge valve, cleaning apparatus, 5 meter long suction pipe,oil-water separators, overflow valve, etc.
	Cylinder vacuum tank can be lifted hydraulically to
	40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel.
	Vacuum pump: Italy or Spain vacuum pumps.
	Anti-rust coating inside tank
