isuzu elf nkr  mini 2ton foam fire truck

ISUZU ELF NKR Mini 2ton Foam Fire Truck

1. This ISUZU ELF NKR  mini 2ton foam fire truck adopts ISUZU ELF NKR chassis , 1,000 liters to 2,000 liters water tank, CB10/20 fire pump, PL24 fire monitor and fire fighting equipment.


2. This ISUZU ELF NKR  mini 2ton foam fire truck could be equipped with different fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 50 meters.


3. This ISUZU ELF NKR  mini 2ton foam fire truck could be equipped with different fire pump (CB10/20 low pressure pump or CB20.10/15.30 medium and low pressure pump ). The max flux is 1200 liters at 10 bar.


4. The water tank material of ISUZU ELF NKR  mini 2ton foam fire truck can be Q235B carbon steel or stainless steel.


Specification Of ISUZU ELF NKR Mini 2ton Foam Fire Truck

SPECIFICATION
Truck Specification
Product NameIsuzu ELF NKR  mini 2ton foam fire truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 6500*2500*3300mm
Chassis Specification
CabinIsuzu ELF NKR cabin, crew cabin, with A/C
Drive type4*2
wheelbase3360mm
Fuel type of engineDiesel
EngineModel4KH1CN5LS
Maximum horse power98HP
Number of cylinders4
Emission standardEuro 5
Gear boxTypeISUZU MSB, Manual, 5 forwards and 1 reverse
TyresSize7.00R16

Quantity6+1 spare tire
Upper body specification
Water tank and Foam tankCapacity1,000 liters to 2,000 liters
Tank Material5mm Q235 Carbon steel or stainless steel
FunctionEquipped with crew cabin, can sit 2+4 firefighters.
Equipped with fire monitor, manual control or electronic wireless control. The fire monitor water range is more than 50 meters.
Equipped with (CB10/20 low pressure pump or CB20.10/15.30 medium and low pressure pump ). The max flux is 1200 liters at 10 bar.
Could be equipped with fire fighting equipment like as fire gun, fire hose, high pressure DN25 hose reel or others.
It can realize the long distance fire fighting.


Trucks

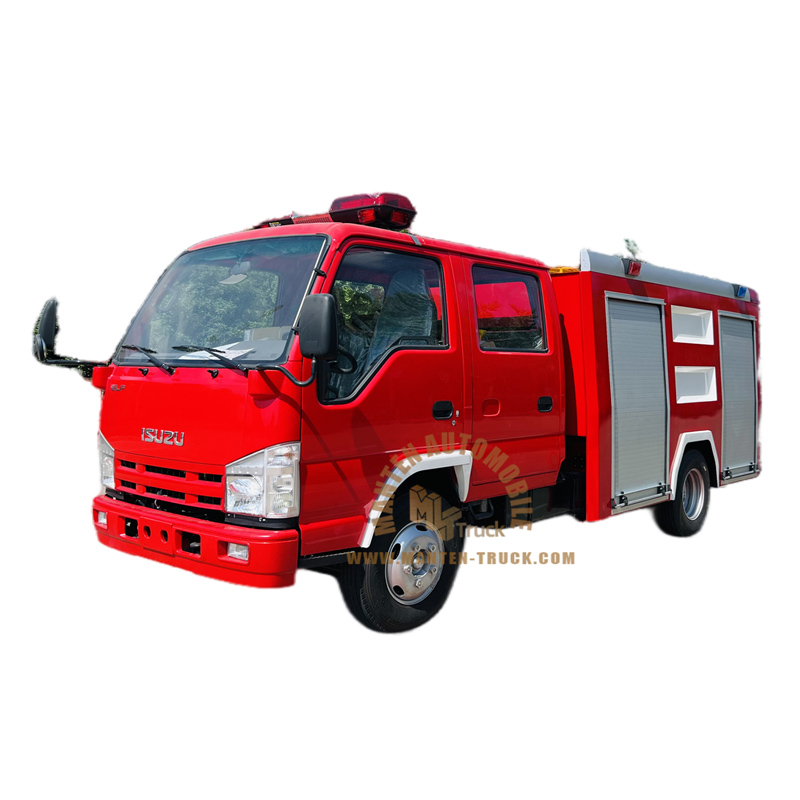

ISUZU ELF NKR Mini 2ton Foam Fire Truck Gallery

isuzu elf nkr  mini 2ton foam fire truck
foam fire fighting truck
foam fire truck
foam tender fire truck
foam unit fire truck
