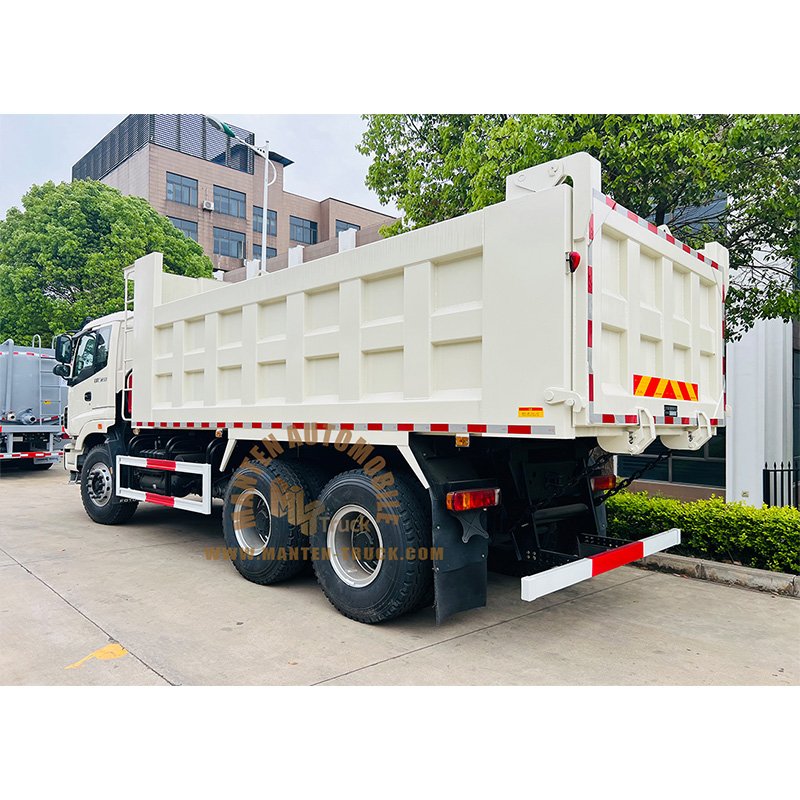

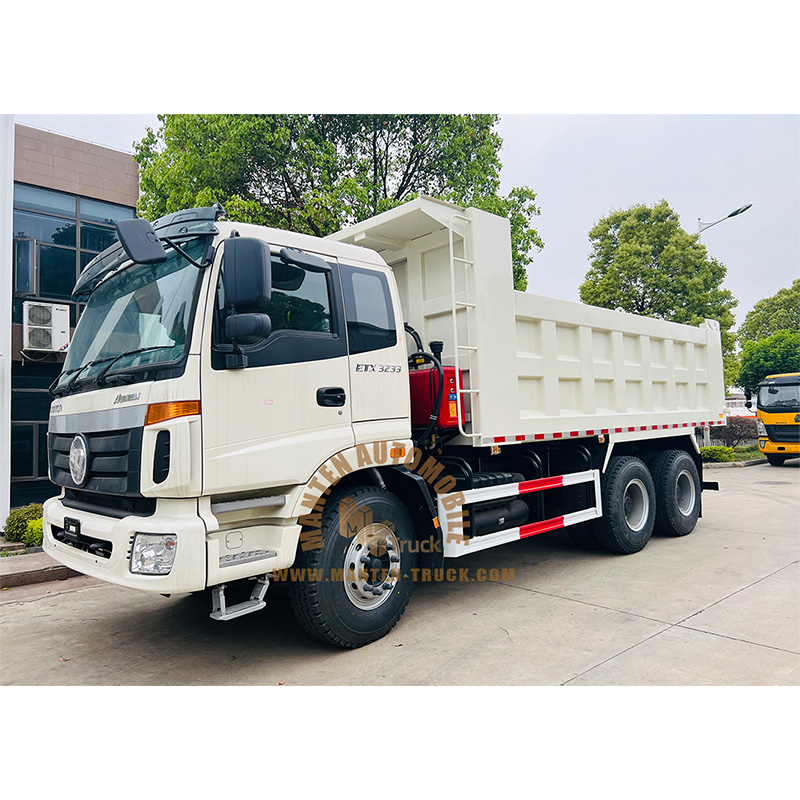

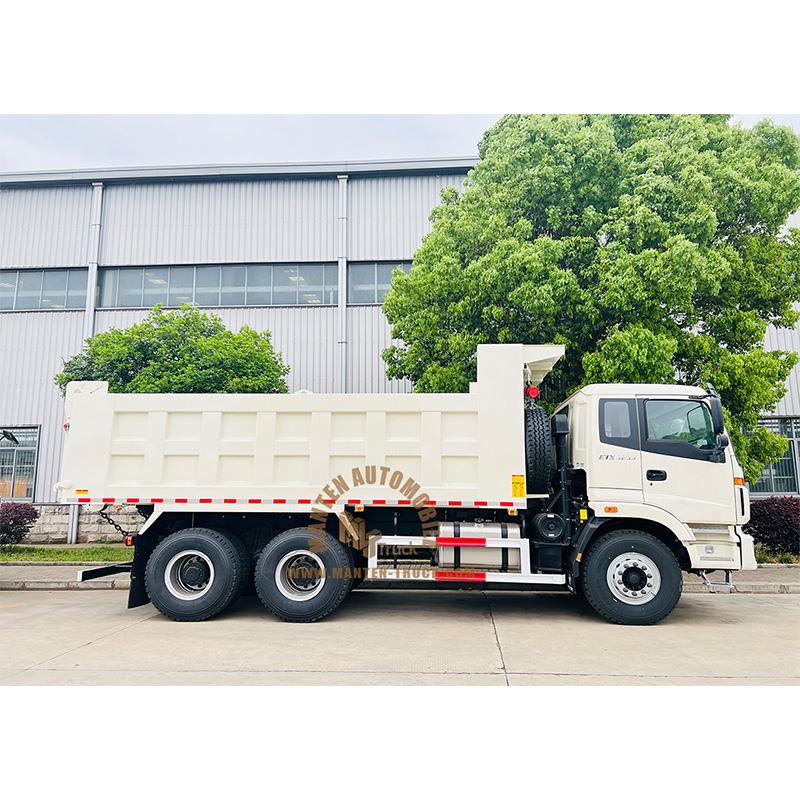

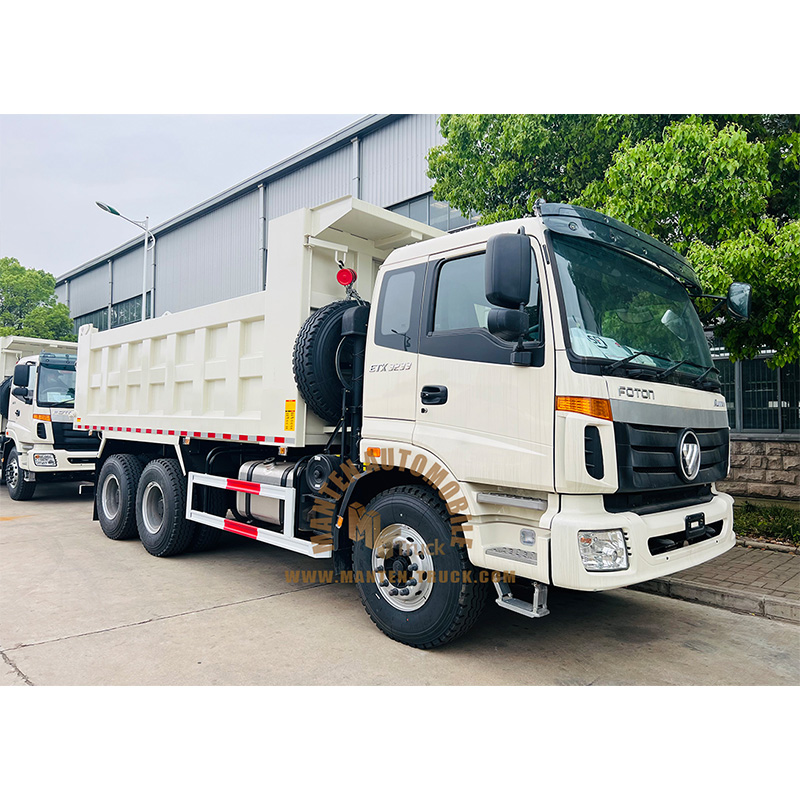

Name: Foton 6x4 20ton-25ton Dump Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of Foton 6x4 20ton-25ton Dump Truck

SPECIFICATION
Truck Specification
Product Name		Foton 6x4 20ton-25ton dump truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 880025003450mmmm
Chassis Specification
Cabin		FOTON ETX cabin , with air conditioner
Drive type		6*4
wheelbase		3825+1350mm or more longer
Fuel type of engine		Diesel
Engine	Model	weichai WP10.336 or cummins
	Maximum horse power	380hp
	Number of cylinders	6
	Emission standard	Euro2 , Euro 3 , Euro 4 or Euro5
Gear box	Type	12JSD180T,Manual, 10 forwards and 2 reverse
Tyres	Size	12.00R20 radial tyre
	Quantity	10+1 spare tire
Upper body specification
Dumper box	Capacity	20m3/18m3/20ton-25ton
	Tank Material	5mm Q235 Carbon steel, or Q345 steel
Function	Equipped with hydraulic middle lifting cylinders.
	Equipped with different many different size dumper box with Q235 carbon steel or Q345 steel .
	Equipped with hydraulic automatic operation.
	Equipped with self unloading function.
	This model have good road passability which can use in the bad road conditions.
