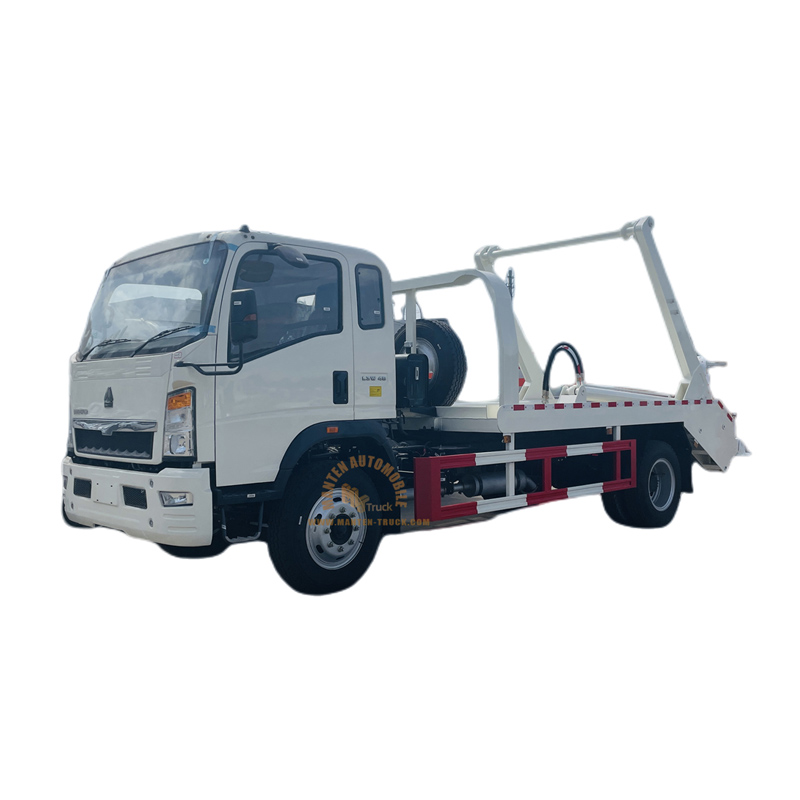

Name: HOWO 4x2 5m³ Skip Loader Garbage Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of HOWO 4x2 5m³ Skip Loader Garbage Truck

SPECIFICATION
Truck Specification
Product Name		HOWO 4x2 5m³ skip loader garbage truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 680022003300mm
Chassis Specification
Cabin		HOWO HANJIANG, 2080 width
Drive type		4*2
wheelbase		3800mm
Fuel type of engine		Diesel
Engine	Model	YN4102QBZL/
	Maximum horse power	116hp
	Number of cylinders	4
	Emission standard	Euro 3
Gear box	Type	WLY646, Manual, 6 forwards and 1 reverse
Tyres	Size	8.25R16
	Quantity	6+1 spare tire
Upper body specification
Garbage bin	Capacity	5m³/6m³/ 5 cubic meters/6 cubic meters/5ton-6ton
	Tank Material	5mm Q235 Carbon steel
Function	Equipped with hydraulic lifting cylinders
	Equipped with different garbage bins (Pit type garbage bins and ground type garbage bins)
	Equipped with hydraulic automatic operation.
	Equipped with self unloading function, it can be lifted up and down by itself
	It can realize the joint operation of one truck and multiple garbage bins
