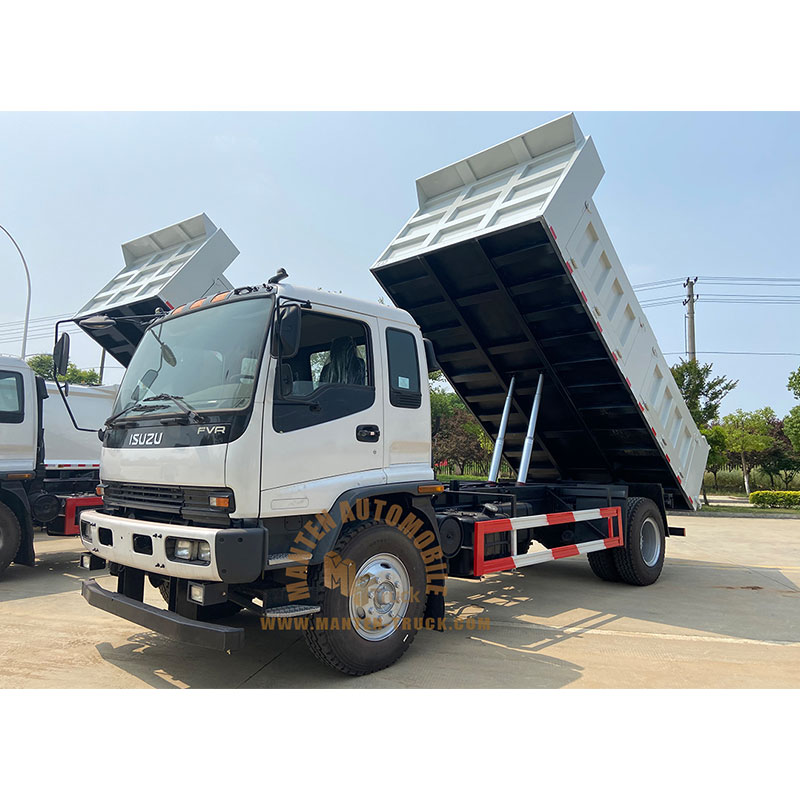

Name: ISUZU 4x2 10ton-15ton Dump Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of ISUZU 4x2 10ton-15ton Dump Truck

SPECIFICATION
Truck Specification
Product Name		Isuzu 4x2 10ton-15ton dump truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 850025003000mmmm
Chassis Specification
Cabin		ISUZU FVR cabin
Drive type		4*2
wheelbase		4500mm or 4700mm
Fuel type of engine		Diesel
Engine	Model	6HK1-TCL, isuzu
	Maximum horse power	205hp
	Number of cylinders	6
	Emission standard	Euro 5
Gear box	Type	MLD,Manual, 6 forwards and 1 reverse
Tyres	Size	10,00R20 radial tyre
	Quantity	6+1 spare tire
Upper body specification
Dumper box	Capacity	10m3/12m3//15m3, 10ton-15ton
	Tank Material	5mm Q235 Carbon steel, or Q345 steel
Function	Equipped with hydraulic middle lifting cylinders.
	Equipped with different many different size dumper box with Q235 carbon steel or Q345 steel .
	Equipped with hydraulic automatic operation.
	Equipped with self unloading function.
	The model have good road passability which can use in the bad road conditions.
