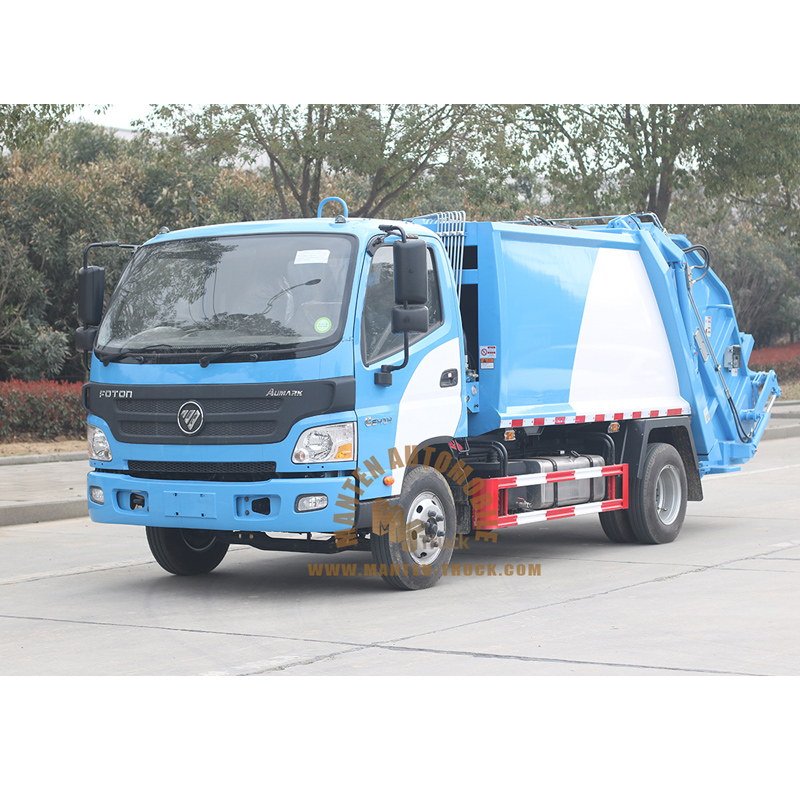

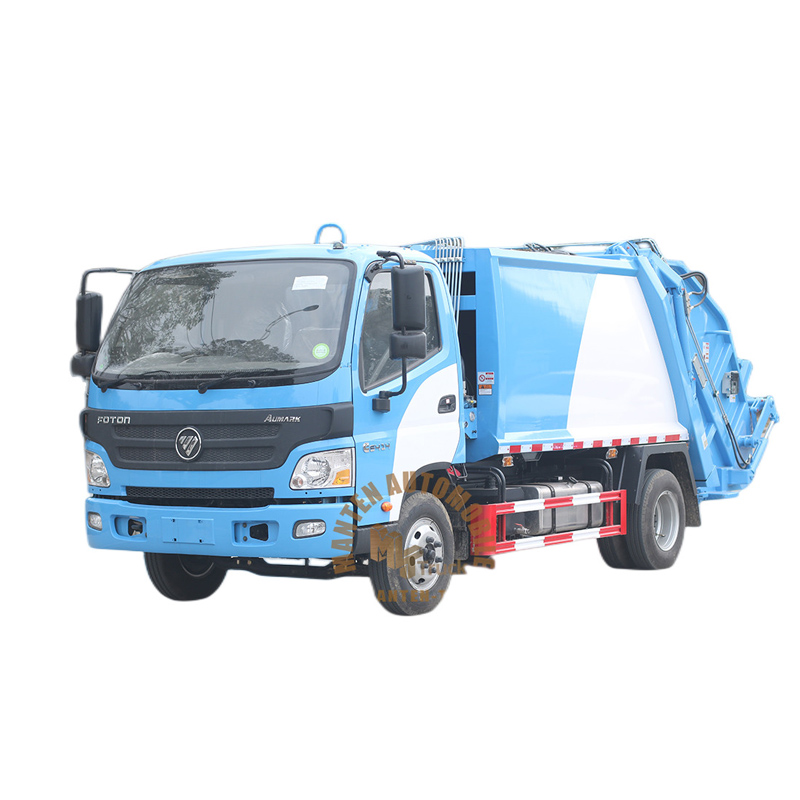

Name: Foton Aumark 6m³ Trash Compactor Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specifications of Foton Aumark 6m³ Trash Compactor Truck

SPECIFICATION
Truck Specification
Product Name		FOTON AUMARK 6m³ trash compactor truck （Refuse Compactor Vehicle）
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 720022002600mm
Chassis Specification
Cabin		AUMARK, 2 persons allowed, with A/C
Drive type		4x2
wheelbase		3800mm
Fuel type of engine		Diesel
Engine	Model	FOTON CUMMINS /YUCHAI POWER
	Maximum horse power	130/140/156HP
	Number of cylinders	4
	Emission standard	Euro 2/3/4/5/6
Gear box	Type	Manual, 6 forward & 1 rear
Tyres	Size	8.25R1616LT
	Quantity	6+1 spare tire
Upper body specification
Waste Tank	Capacity	6m³ / 6,000Liters /6CBM /6 CU.M
	Tank Material	4mm Q235 Carbon steel
Function	1. Can choose 240L (single bin, double bins) and turnover device (plastic or steel garbage bin), can also choose ground hopper, swing arm device or other kinds of loading device.
	2. With manual and automatic two sets of control method, the operator can control in the cabin, in the middle side or the back of the truck, very convenient and efficient. With working device of emergency braking stop button.
	3. Garbage body use frame design, elegant, strong structure, large effective capacity.
	4. Equipped with special collection box, sewage directly into the sewage tank in the process of compression, that is effectively prevent second pollution caused by sewage leaks.
	5. Through hydraulic system design, the truck achieve the function of two-way garbage compression, that is improve the compressibility, make the compression ratio up to 1:2.5, the garbage can reach more then 600~800kg/m³ after compression. CAN electric automatic control.
