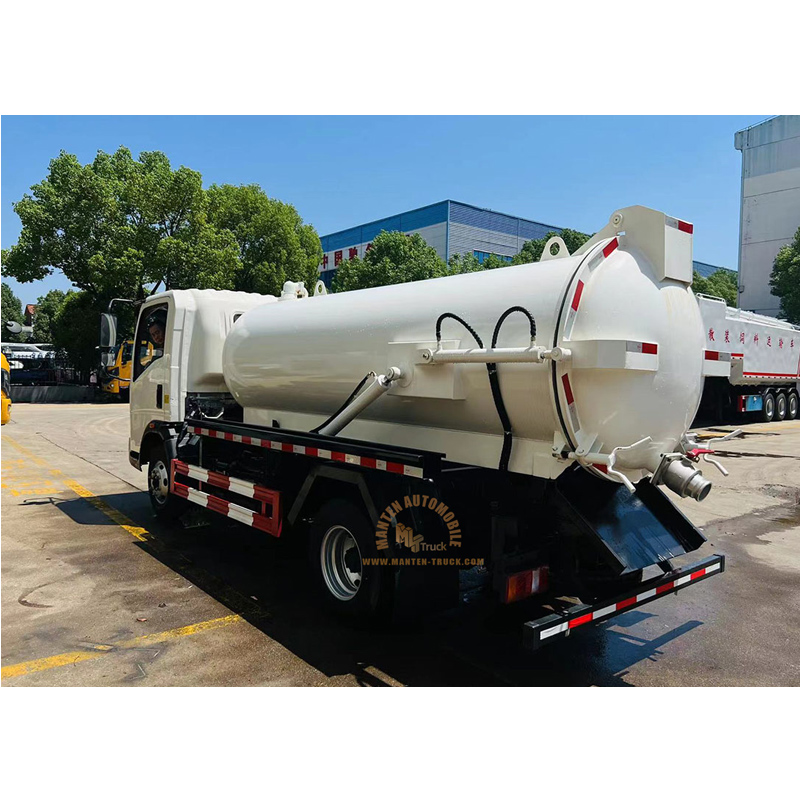

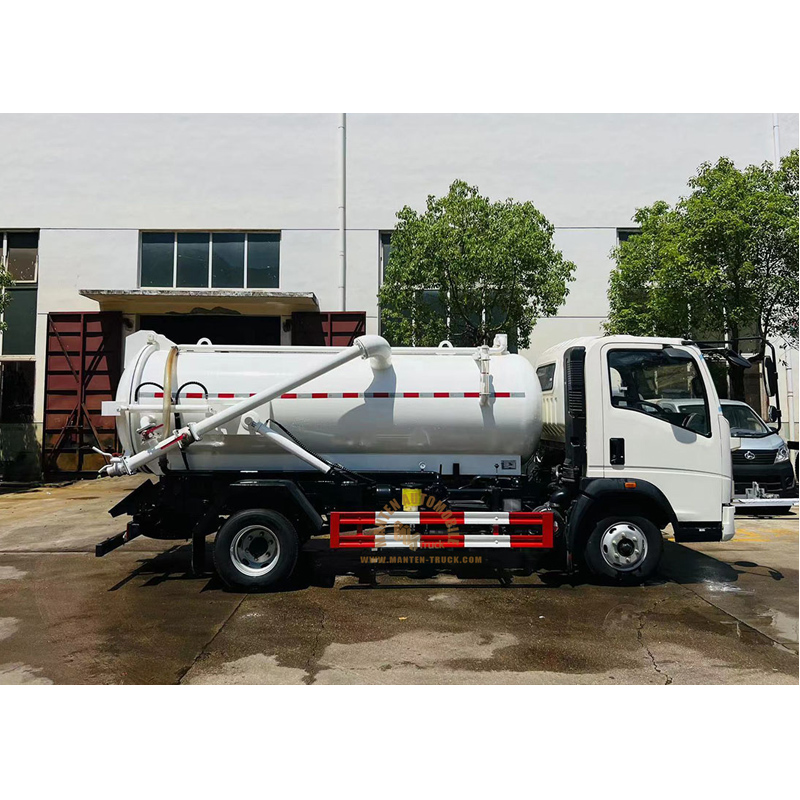

Name: Sinotruk Howo 5 Tons Vacuum Tank Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of 5tons 5 M3 Sinotruk Howo Vacuum Tank Truck

SPECIFICATION
Truck Specification
Product Name		5 tons Sinotruk Howo vacuum tank Truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 599521002870mm
Chassis Specification
Cabin		2080 cabin ，LHD/RHD, A/C
Drive type		4*2
wheelbase		3360mm
Fuel type of engine		Diesel
Engine	Model	YN4102 Series
	Maximum horse power	116 hp
	Number of cylinders	4
	Emission standard	Euro 2
Gear box	Type	6 forward & 1 rear
Tyres	Size	7.00R16
	Quantity	6+1 spare tire
Upper body specification
Sewage Tanker	Capacity	5cubic meters (5000 litters)
	Material	High tension steel, 5mm Tank body and End Plate,
Dumping System	Middle Tipper	Hydraulic Controlled Rear Door and Middle lifting.
	Rear Door	Hydraulic controlled with sewage drain pipe
Vacuum Pump	High Efficiency China brand vacuum pump, water cooling model vacuum pump or other customized one
Other Parts	Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device
Other specification required from buyer.	Steel fabricated hose box mounted on side of the tank;
	Two lengths of 3’’x6 meters long suction hose;
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min,
	Effective suction range ≥ 8,
	Max vacuum degree ≤ 15 Kpa,
	dump angle ≥ 45
Standard configuration	Equipped with Inspect window, discharge valve, cleaning apparatus, 5 meter long suction pipe,oil-water separators, overflow valve,etc.
	Cylinder vacuum tank can be lifted hydraulically to
	40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel.
	Vacuum pump : Italy or Spain vacuum pumps.
	Anti-rust coating inside tank
