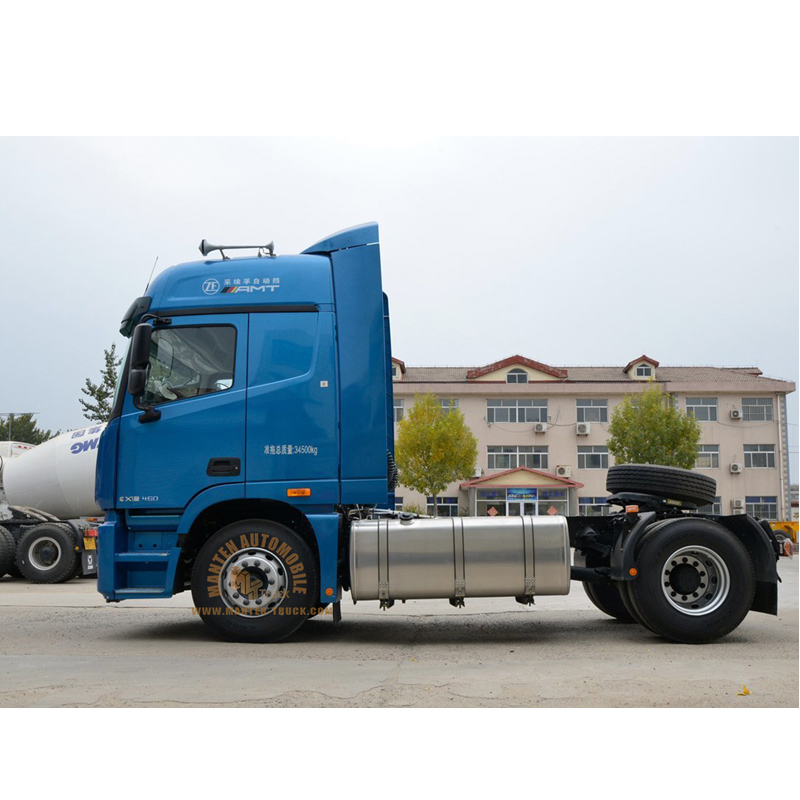

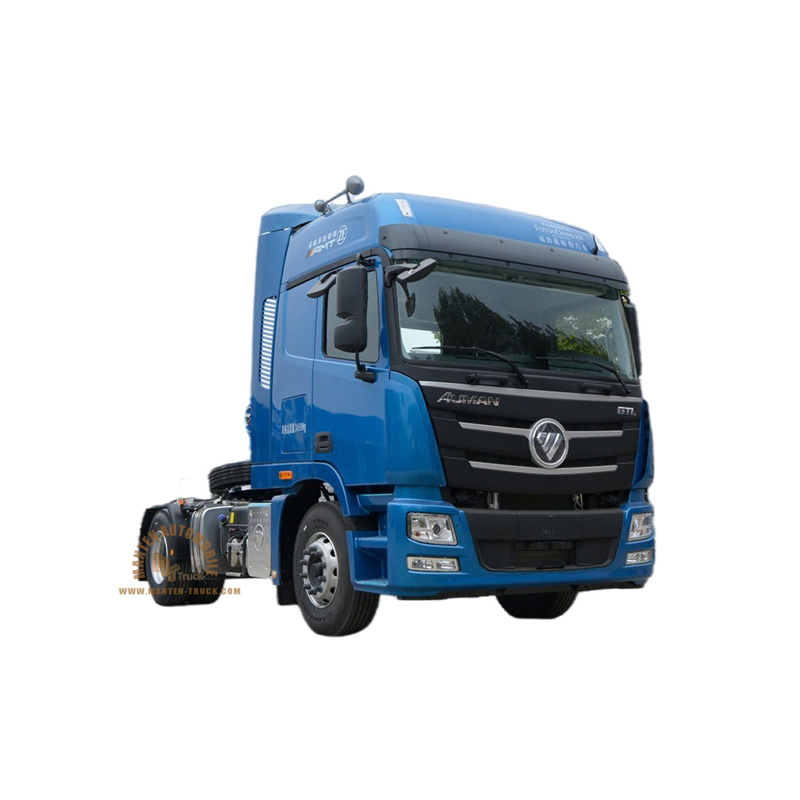

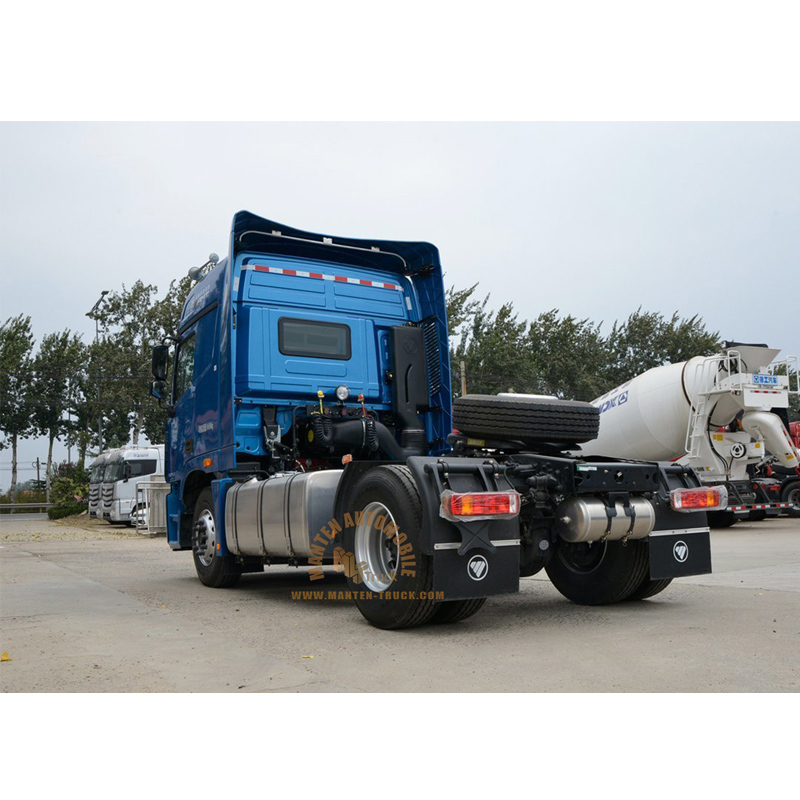

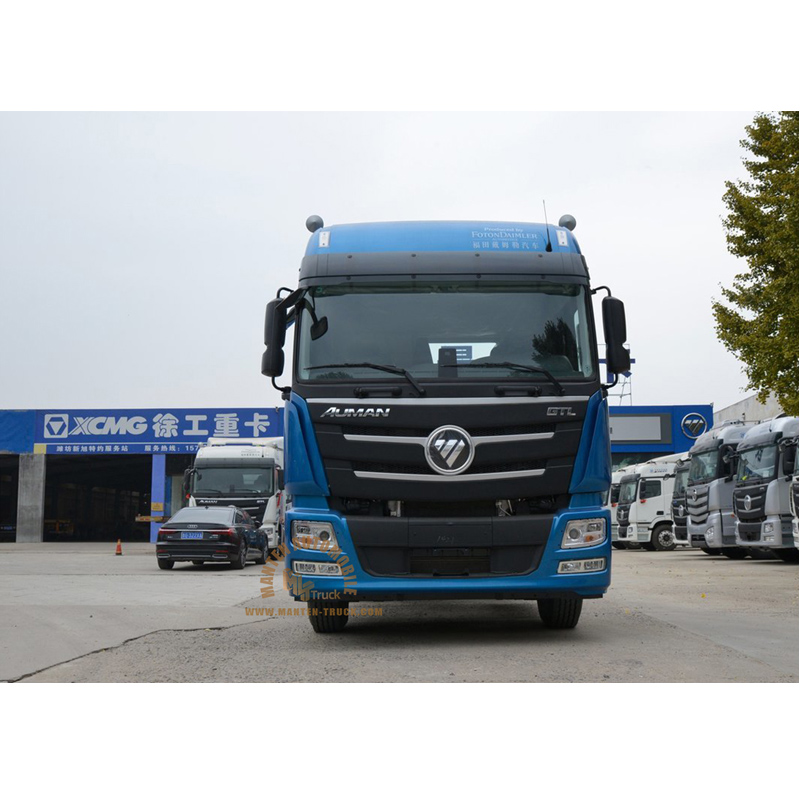

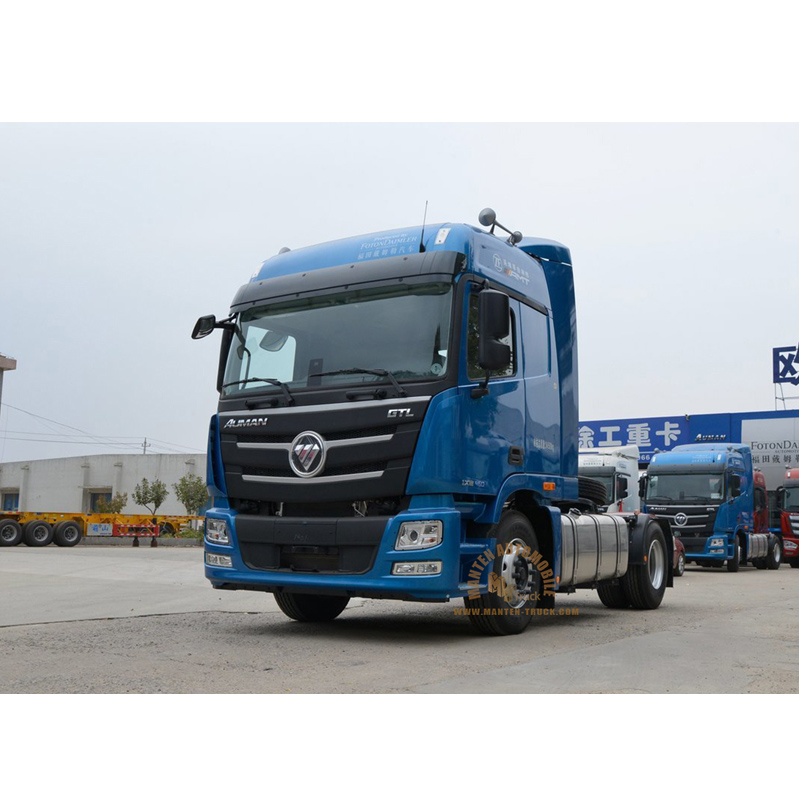

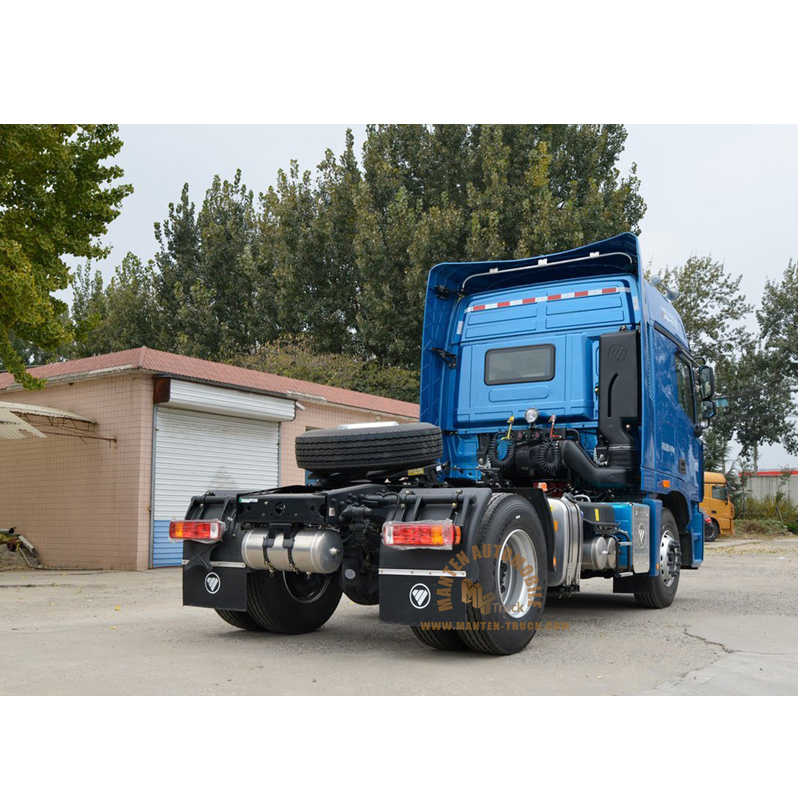

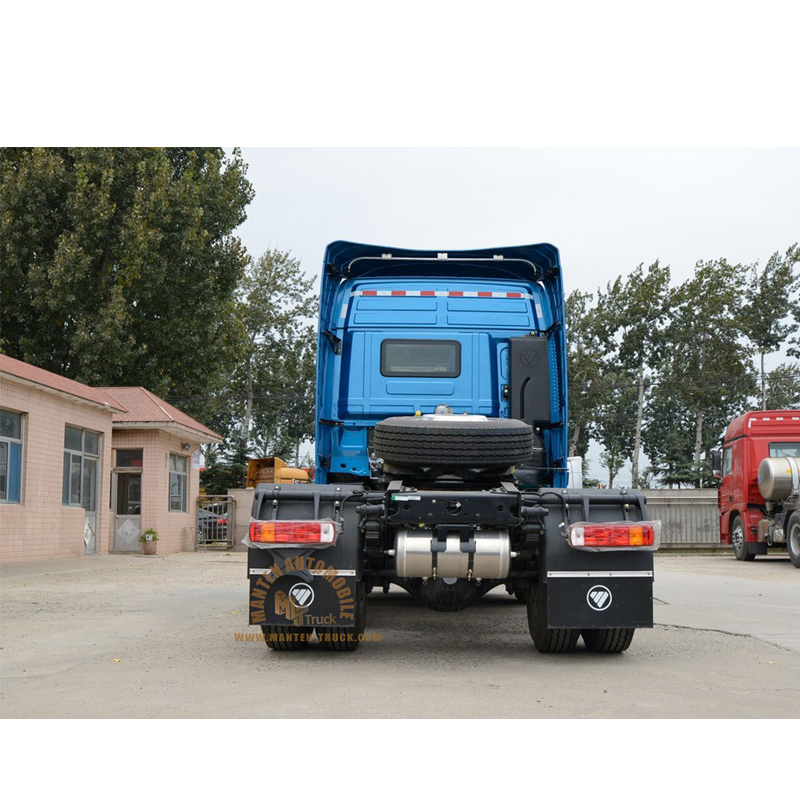

1. This prime mover adopts FOTON chassis ,this tractor is FOTON's automatic tractor truck,total traction mass is 35T,equipped with ABS antilock.
2. The FOTON prime mover 'gearbox shift mode:AMT manual self - integrated gear shifting mode.
3.High-quality body steel plate overall stamping molding, composite sandwich steel plate welding, effectively improve the passive safety, higher structural strength, reduce the cab absorbed energy, vibration and deformation, sound prevention effect is better.
SPECIFICATION | ||
Truck Specification | ||
Product Name | FOTON AMT Prime Mover | |
Truck Manufacturer | MANTEN GROUP | |
Overall dimensions (L×W×H) | About 6300*2500*3200 mm | |
Chassis Specification | ||
Cabin | Row half cab,LHD | |
Drive type | 4*2 | |
wheelbase | 3600mm | |
Front/Rear Wheel base | 2010/1800mm | |
Maximum speed | 95km/h | |
Fuel type of engine | Diesel | |
Front axle loading capacity | 7000kg | |
Rear axle loading capacity | 11000kg | |
Engine | Model | Cummins ISGe5-460 |
Maximum horse power | 460hp | |
Number of cylinders | 6 | |
Emission standard | Euro 5 | |
Displacement | 11.8L | |
Maximum torque | 2300N·m | |
Gear box | Shift way | AMT manual self - integrated gear shifting mode |
Tyres | Size | 12R22.5 18PR |
Quantity | 6+1 spare tire | |
Upper body specification | ||
Cab | FOTON high top cab, 3seats | |
Total traction mass | 35T | |
Function | Equipped with ABS antilock |
