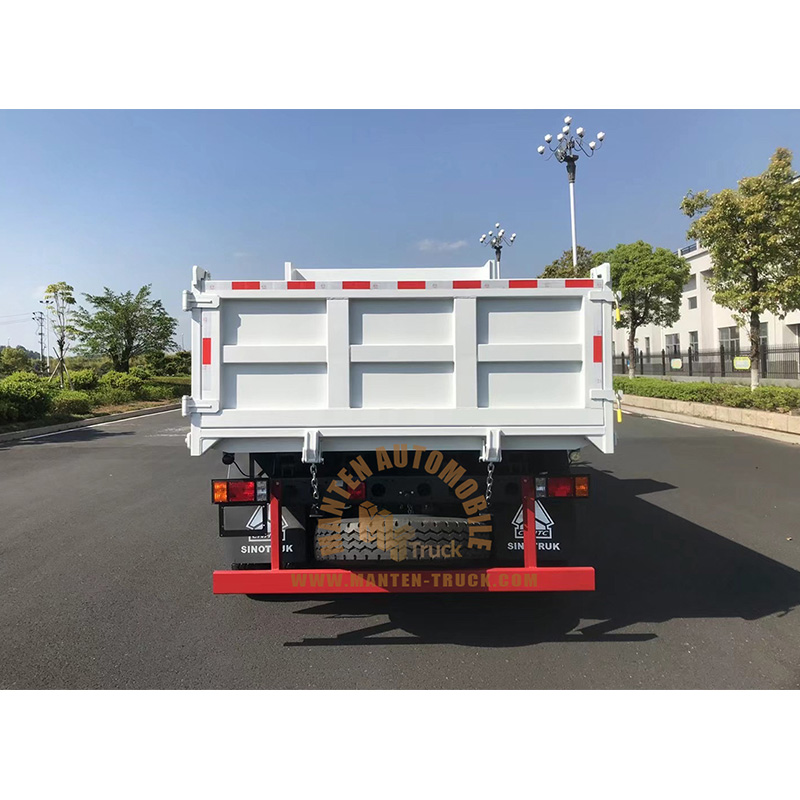

Name: HOWO 4x4 5ton-6ton Dump Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of HOWO 4x4 5ton-6ton Dump Truck

SPECIFICATION
Truck Specification
Product Name		HOWO 4x4 5ton-6ton dump truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 650025002500mmmm
Chassis Specification
Cabin		HOWO cabin
Drive type		4*4
wheelbase		3800mm
Fuel type of engine		Diesel
Engine	Model	YUCHAI YC4D130-33
	Maximum horse power	130HP
	Number of cylinders	4
	Emission standard	Euro3
Gear box	Type	Manual, 6 forwards and 1 reverse
Tyres	Size	8.25R20 radial tyre
	Quantity	6+1 spare tire
Upper body specification
Dumper box	Capacity	5m3/6m3/5ton-6ton
	Tank Material	5mm Q235 Carbon steel, or Q345 steel
Function	Equipped with hydraulic middle lifting cylinders.
	Equipped with different many different size dumper box with Q235 carbon steel or Q345 steel .
	Equipped with hydraulic automatic operation.
	Equipped with self unloading function.
	The 4x4 all driven model have good road passability which can use in the bad road conditions.
