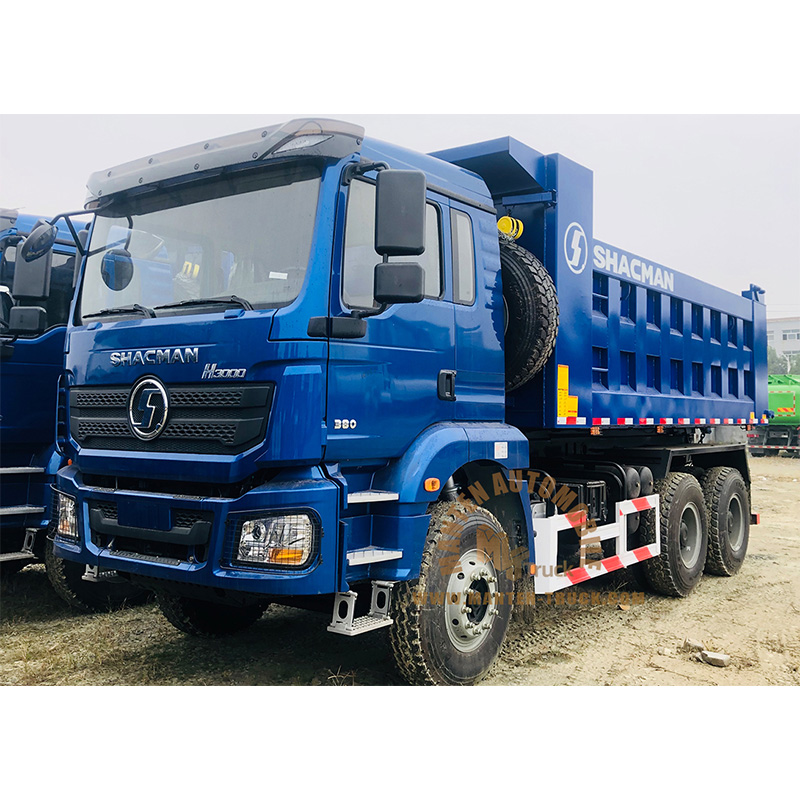

Name: SHACMAN 6x4 20ton-25ton Dump Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of SHACMAN 6x4 20ton-25ton Dump Truck

SPECIFICATION
Truck Specification
Product Name		shacman 6x4 20ton-25ton dump truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 880025003000mmmm
Chassis Specification
Cabin		SHACMAN H3000/F3000
Drive type		6x4
wheelbase		3775+1400mm
Fuel type of engine		Diesel
Engine	Model	WEICHAI /CUMMINS
	Maximum horse power	380hp
	Number of cylinders	6
	Emission standard	Euro 3
Gear box	Type	FAST,Manual,10 forwards and 2 reverse
Tyres	Size	12,00R20 radial tyre
	Quantity	10+1 spare tire
Upper body specification
Dumper box	Capacity	20m3/25m3, 20ton-25ton
	Tank Material	5mm Q235 Carbon steel, or Q345 steel
Function	Equipped with hydraulic middle lifting cylinders.
	Equipped with different many different size dumper box with Q235 carbon steel or Q345 steel .
	Equipped with hydraulic automatic operation.
	Equipped with self unloading function.
	The model have good road passability which can use in the bad road conditions.
