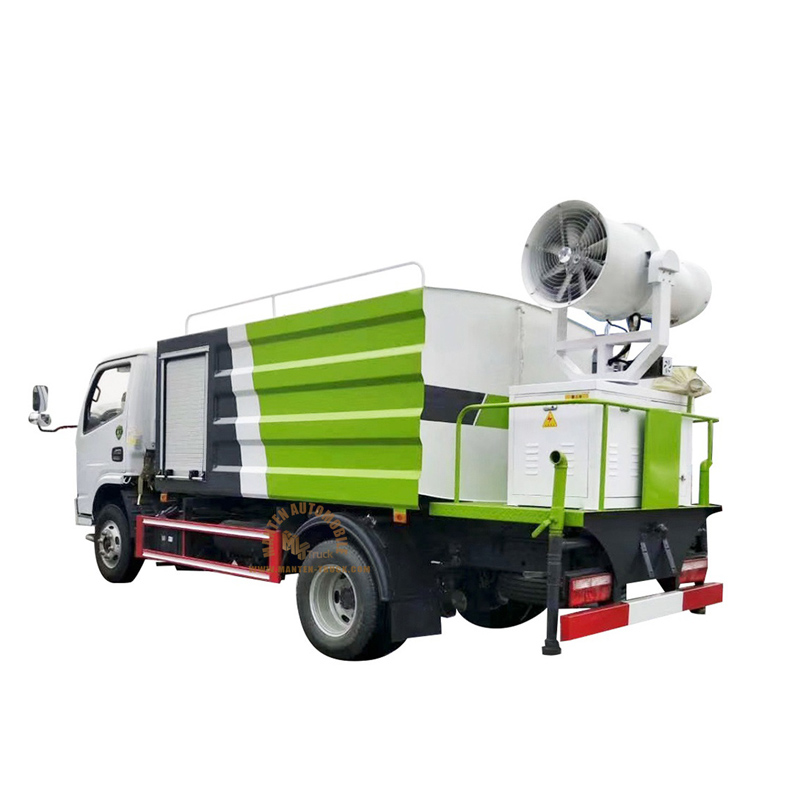

Name: Dongfeng 4x2 5 Tons Dust Reducing Truck
Brand: Hubei Manten Automobile Co., Ltd.

Specification Of Dongfeng 4x2 5 Tons Dust Reducing Truck

SPECIFICATION
Truck Specification
Product Name		5000Liters siontruk howo dust reducing truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 600022002870mm
Chassis Specification
Cabin		DONGFENG cabin，LHD/RHD, A/C
Drive type		4*2
wheelbase		3360mm
Fuel type of engine		Diesel
Engine	Model	YN4102QBZL
	Maximum horse power	116 hp
	Number of cylinders	4
	Emission standard	Euro 2
Gear box	Type	6 forward &1 rear
Tyres	Size	7.50R16
	Quantity	6+1 spare tire
Upper body specification
Water Tank	Capacity	5 M3 / 5000Liters /5CBM dust reducing truck
	Tank Material	5mm Q235 Carbon steel
Function	Equipped with fire valve, water valve, and filter gauze
	Equipped with front (rear, side) sprinkler (sprinkling width>14m )
	Equipped with rear working platform with water cannon (range>28m)
	Head of delivery :100M
	Equipped with water pump(suction lift>6m)
Equipment	Generator, dust suppression machine and relevant system
Maximum Spray Range(m)		100
Maximum Spray Height(m)		30
Spray Volume(L/min)		0～160
Spray Water Pressure(Mpa)		2
Nozzle Pitch Angle(°)		-10～60
Horizontal Rotation Angle(°)		-90～90
