asphalt oil distributor trucks

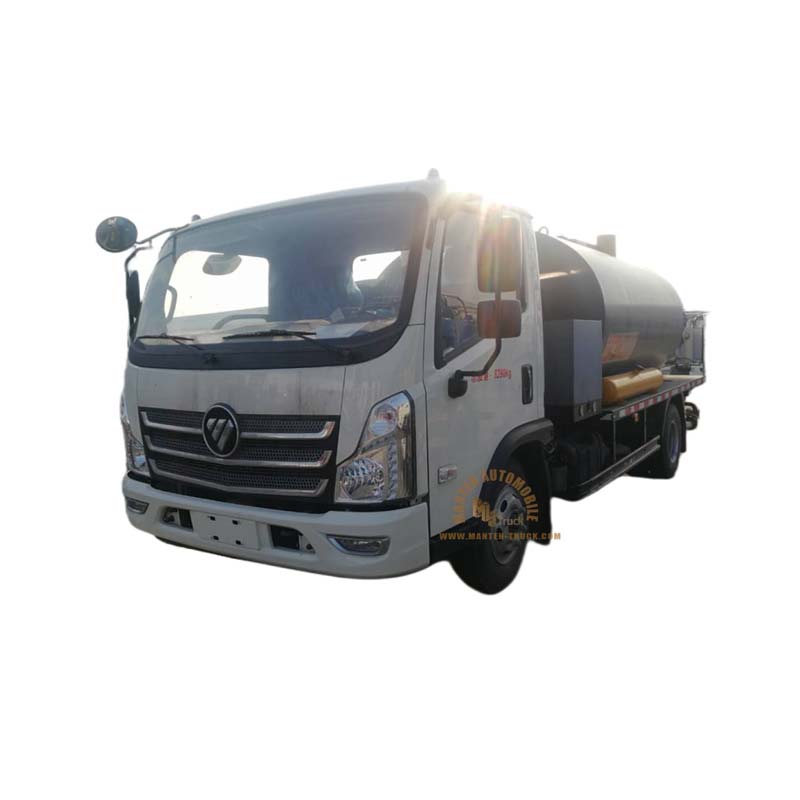

FOTON 4x2 6000L Asphalt Distribution Truck

1. The FOTON 6000L asphalt distributor truck made by MANTEN owns excellent strong carring loading capacity, with flexible and light controllability.


2. Both manual and automatic control modes can be used to control each nozzle separately, so that the spraying width can be adjusted arbitrarily.


3. Vehicle-mounted rapid heating system (10-15 ℃/h) can improve heating efficiency and reduce construction auxiliary time, so that to ensure the temperature of sprinkling.


Specification Of FOTON 4x2 6000L Asphalt Distribution Truck

SPECIFICATION
Truck Specification
Product NameFOTON 4x2 6000L Asphalt Distribution Truck
Truck ManufacturerMANTEN GROUP
Overall dimensions (L×W×H)About 7200×2350×2750mm
Chassis Specification
CabinFOTON, LHD/RHD, A/C
Drive type4x2
wheelbase3800mm
Fuel type of engineDiesel
EngineModelCummins ISF3.8s5154
Maximum horse power156HP
Gear boxType6 forward & 1 rear
TyresSize8.25R20
Quantity6+1 spare tire
Upper body specification
Asphalt Tank Capacity6000L
Static insulation performance index≤12℃/8H
Spraying Width4500mm
Asphalt Spraying Rate0.2-4.0L/m2
Nozzles Number29pcs
Spraying error±2%
BurnerG20, Italian RIELLO
Hydraulic Motor of Asphalt pump05-130-BD31, TILORMS
PLC Control SystemCLW-48-01, SIEMENS
Hydraulic PumpCBQ563-L, CHANGYUAN
Heat-transfer Oil PumpRY25-25-160, BOTOU
Proportional ValveEFBG-03-160-HF, TAIWAN
Asphalt PumpQGB950, SHANGGUI
Generator6KW Petrol Generator
OthersGermany Vehicle Speed Sensor, Germany Pump Rotation Speed Sensor, Chinese famous Temperature Sensor


Trucks

FOTON 4x2 6000L Asphalt Distribution Truck Gallery

asphalt oil distributor trucks
bitumen sprayer truck
foton 4x2 6000l asphalt distribution truck
