LPG Transport & Delivery Truck For Sale, LPG Trucking Company

Different Types Of LPG Transport Truck

Dongfeng 6x4 10ton LPG Tank Lorry View More

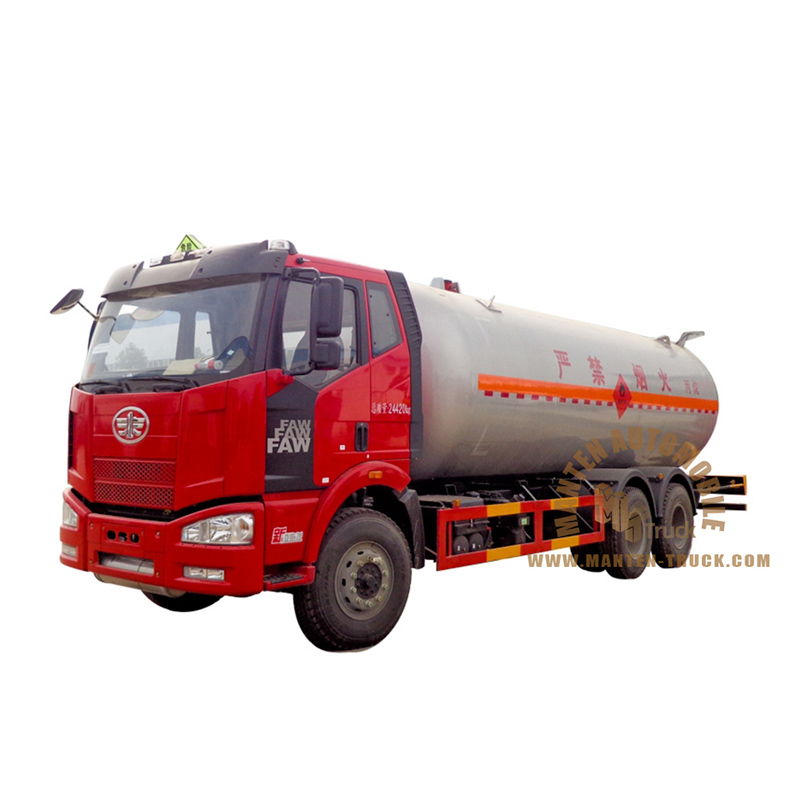

Faw 6x4 12ton Ammonia Transportation Truck View More

Faw 8x4 35cbm LPG Tanker Truck View More

ISUZU 25000liters LPG Transport Truck View More

SINOTRUK HOWO 6x4 12ton Propane Tanker Truck With Sun Shield View More

Specification of LPG Transport Truck

SPECIFICATION
Truck Specification
Product Name		lpg tranport truck
Truck Manufacturer		MANTEN GROUP
Overall dimensions (L×W×H)		About 1072024963420mm
Chassis Specification
Cabin		Dongfeng , Foton, Sinotruk Howo, ISUZU, FAW ,NORTH BENZ, JAC, CAMC
Drive type		4X2 ,6X4,8X4, 4X4, 6X6,8X8
Fuel type of engine		Diesel
Engine brand		Cummins, ISUZU ,Wechai, Yuchai, Yunnei
Transmission brand		Fast ,ZF , Manual/ ATM
Tire brand		Tri-angle, Double Coin, Good year ,Michelin
Upper body specification
LPG Tank	Capacity	10cbm/ 15cbm/20cbm/25cbm/30cbm/35cbm
	Tank Material	Q345R high tension steel, 10mm Thick Tank Body.
Tank Specification	Designed Pressure: 1.66Mpa Filling Ratio: 0.55 ton/M3 Working Temperature: under 50 centi-degree Corrosion Allowance: 1mm
Main Accessories	Emergency Cut-off Valve, Safety Valve, Ball Valve, Liquid level meter, Pressure gauge, Temperature Gauge, 2 Valve Boxes in both sides. Sun-shield
Standard	Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels

LPG Transport Truck Manufacturers & Supplier

1. Q345R, Q370R, 16MnDR materials are commonly used as fabrication materials. After flaw detection, heat treatment, hydrostatic and pneumatic tests, the Bureau of Technical Supervision conducted on-site inspections, issued inspection certificates for pressure vessels, and completed external rust removal and painting.

2. The inspection and test of the sealing and pressure resistance of the product and all technical indicators that can affect the safe operation of the product.

3. The welded joints, welds, tank heads, and the geometric positions of each pressure component shall pass X-ray non-destructive testing and magnetic particle flaw detection strictly.

Trucks

Highlights of LPG transport truck

The tank body of the liquefied gas tank truck is a pressure vessel, which is an important part of the liquefied gas tank truck. In order to reduce the material consumption and ensure that the tank body has sufficient strength and stiffness, round section or spherical tank body with uniform stress in all aspects must be used.

Tank Body Rolling

The tank body is also equipped with a wave shield to increase the damping of the liquid in the tank and improve the stability of the vehicle. Some wave plates are provided with several damping holes to further increase their damping effect.

Tank Water Pressure Test
