LPG Road Tanker Trailers For Sale, LPG Tank Trailer Manufacturer

LPG Transport Trailer Types

2axle 40cbm LPG Tank Trailer View More

25mt LPG Tank Semi Trailer View More

40cbm Ammonia Road Tank Trailer View More

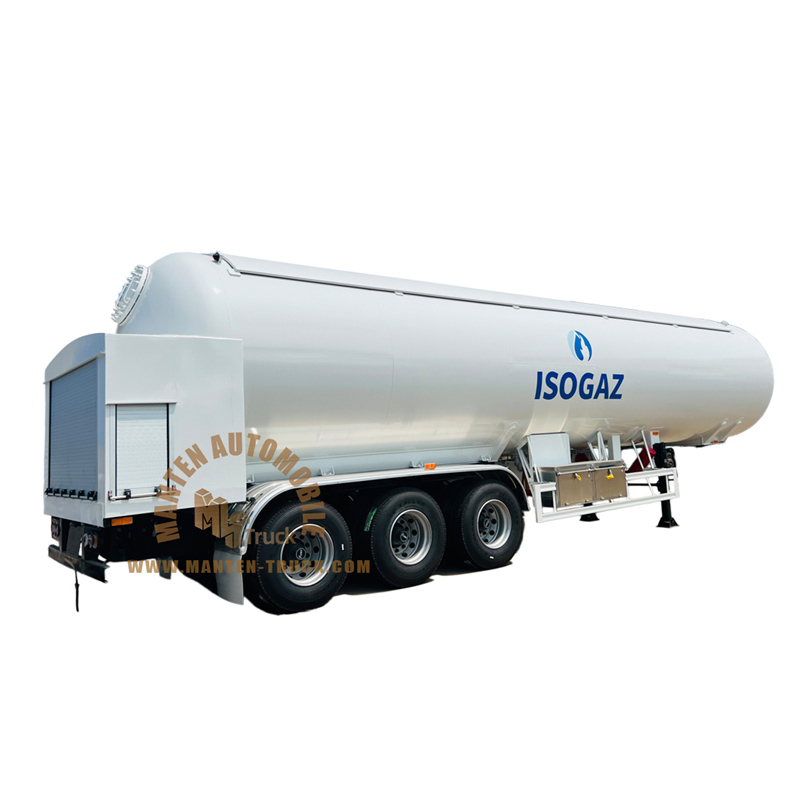

50cbm LPG Tank Trailer With Flow Meter View More

56000liters Propane Road Tank Lorry View More

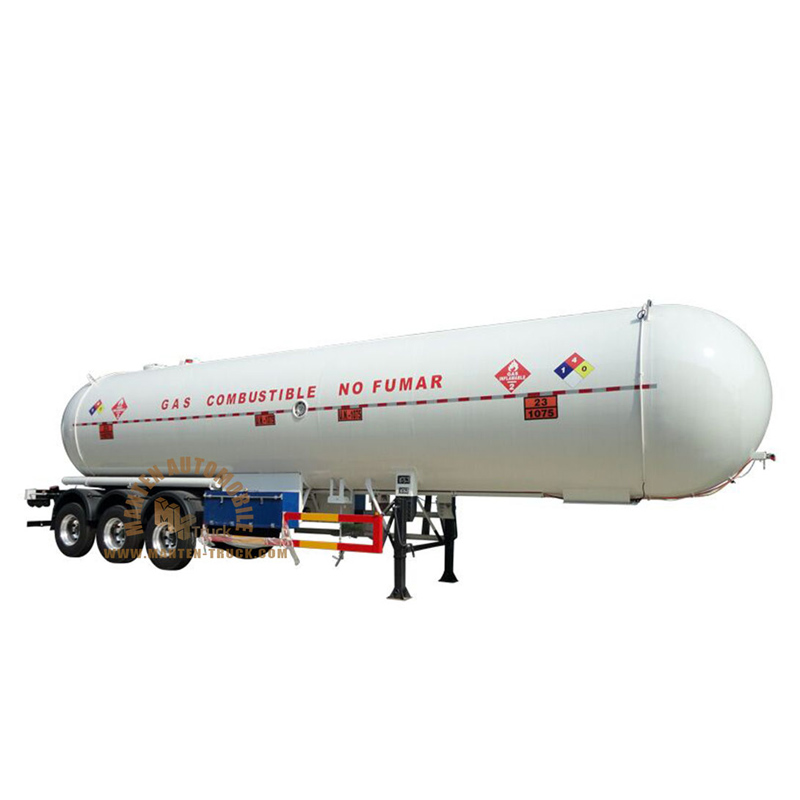

Asme 58cbm Propane Tank Semi Trailer View More

LPG Tank Trailer Specification

SPECIFICATION
Tanker Essential Information
Volume of Tank		40cbm/50cbm/55cbm/58cbm/60cbm
Overall Dimensions(LWH)(mm)		1270024803800
Tank Dimensions(Inner DiameterthicknessLength)		245011.512340
Estimated Tare Weight (kg)		15480
Payload(kg)		23520
Total Weight(kg)		39000
Wheelbase(mm)		6865+1310+1310
Shell of Tanker
Products		Liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene, butadiene, ethylene oxide
Fluid Property		Flammable
Design Temperature(℃)		-50℃~60℃
Design Pressure(MPa)		1.61
Corrosion Allowance(mm)		1
Weld Joint Factor		1
Major Materials of Bearing Pressure		Tanker body:Q345R,12mm,
		End plate：Q345R,12mm,double ellipse
		Main beam:Q345
Safety Accessories		Safety valve, Level Gauge, Thermometer, Pressure Gauge, Emergency cut-off valve, Ball valve
Trailer Specification
I Beam &Chassis		Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.
Axle		3 axles
		BPW 13 ton
Suspension		German design mechanical suspension
Leaf Spring		13-piece leaf spring. 11x100
King Pin		JOST brand 2” Bolt-in King Pin
Landing Gear		JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim		9.00R22.5 wheel rim, 13 pieces
Tire		12R22.5 tubeless tire with one spare tire, 13 pieces
Spare Tire		One set of spare tire including a carrier
Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Accessories		One standard tool box

LPG Tanker Trailer For Sale Gallery

Customized LPG tank road semi-trailer can be customized according to customer request as following：

1. Aluminum alloy sun visor

2. Aluminum alloy tool box

3. Aluminum alloy mudguards

4. Flow meter and retractable reel, to monitor the liquid refilling volume.

5. Customized valves, such as internal thread type. Available for South American customers

6. Customized ASME standard LPG semi-trailer

7. Customized manhole at the end of the tank

8. Customized spherical head, optional front and rear spherical heads, or front spherical head and rear elliptical head

9. Customized walking mechanism front axle lift

10. Customized aluminum alloy steel wheel rim

Customization process:

Customers put forward customization requirements of LPG transport trailer before placing an order, so that the technical department would draft the design schedule drawing and production department can prepare in advance and deliver on time.

Customized product manufacture delivery time:

The delivery time of customized LPG tank trailer would be 45-55 days after prepayment received.

LPG Tank Trailer Manufacturers & Suppliers

1. The surface anti-corrosion coating of LPG semi trailer adopts advanced processes such as sand blasting, rust removal, spraying and purging.

2. High quality domestic or imported safety accessories are available for users to choose from, with complete supporting facilities.

3. Scientific and advanced construction technology shall be strictly adopted to ensure the lowest shrinkage and the highest dimensional stability of our LPG tanker trailer for sale at low temperature.

4. Strict quality inspection: 100% radiographic inspection is conducted for Class A and B welds, and Class II welds are qualified; C. 100% magnetic particle flaw detection for Class D welds, Class I qualified.

5. Our company can also design and refit LPG transport trailer suitable for most gases such as liquid ammonia, liquid sulfur dioxide, propylene, propane, liquefied petroleum gas, dimethyl ether, n-butane, isobutane, butene, isobutylene, butadiene, ethylene oxide, etc. according to customer needs.

LPG Transport Trailer Video

Trucks

Highlights of LPG Tank Trailer

The tank body of LPG semi-trailer adopts advanced welding process, arc butt welding process of the head, and integral one-step forming technology. LPG tanker trailer for sale is fast in installation, convenient in maintenance, and beautiful in appearance.

Anti-wave Plate

The anti-corrosion coating on the tank body of LPG semi-trailer adopts advanced processes such as sand blasting, rust removal, spraying and purging.

LPG Road Tankers For Sale Body Welding

High quality domestic or imported safety accessories, carburetors and pumps shall be selected for LPG semi-trailer for users' selection, with complete supporting facilities.

Trailer For Painting
