Asphalt Distributor Truck For Sale, Asphalt Distributor Truck Manufacturer

Different Types Of Asphalt Distributor Truck

ISUZU 3CBM Asphalt Distributor Truck View More

Sinotruk HOWO 16cbm Asphalt Distributor Truck View More

Dongfeng 4x2 8cbm Bitumen Sprayer Truck View More

FAW 4x2 12m³ Asphalt Spreader Truck View More

FOTON 4x2 6000L Asphalt Distribution Truck View More

Shacman 4x2 10ton Road Paving Bitumen Truck View More

Specification Of Asphalt Distributor Truck

SPECIFICATION
Truck Specification
Product Name		Asphalt Distribution Truck
Truck Manufacturer		MANTEN GROUP
Chassis Specification
Chassis brand		Dongfeng, Foton, Sinotruk Howo, ISUZU, FAW, NORTH BENZ, JAC, CAMC
Drive type		4X2, 6X4, 8X4, 4X4, 6X6, 8X8
Engine brand		Cummins, ISUZU, Wechai, Yuchai, Yunnei, SINOTRUK
Transmission brand		Fast, ZF, Manual/ ATM
Tire brand		Tri-angle, Double Coin, Good year, Michelin
Upper body specification
Asphalt Tank Capacity		3000L to 25000L
Static insulation performance index		≤12℃/8H
Spraying Width		4500-6000mm
Asphalt Spraying Rate		0.2-4.0L/m2
Nozzles Number		36 ~ 48pcs
Spraying error		±2%
Burner		Italian RIELLO G20
Others		Generator, Asphalt Pump, Hydraulic Motor of Asphalt pump, PLC Control System, Heat-transfer Oil Pump, Hydraulic Pump, Temperature Sensor, Vehicle Speed Sensor

Asphalt Distributor Truck Manufacturers & Suppliers

1. The automatic control system of MANTEN asphalt distribution truck can measure the vehicle speed and automatically calculate the asphalt pump rotation according to the inputted spraying amount and spraying width and the asphalt type, and then automatically adjust the pump rotation through the system.

2. The key parts (such as the hydraulic pump, hydraulic motor, asphalt pump, proportional valve, PLC control system, burner) adopts well-know components, to ensure the reliability and improve the service lift of the machine.

3. The function of blowing the residual asphalt out of the nozzles via diesel and high-pressure air to prevent the asphalt from freezing in the nozzles, which can greatly improve the service life of the nozzles.

Trucks

Highlights of Asphalt Distributor Truck

Accoring to the need of spraying quantity and width,the computer of MANTEN asphalt distribution truck can realize any form of combination on the spray nozzle.

Intelligent Spray Nozzle

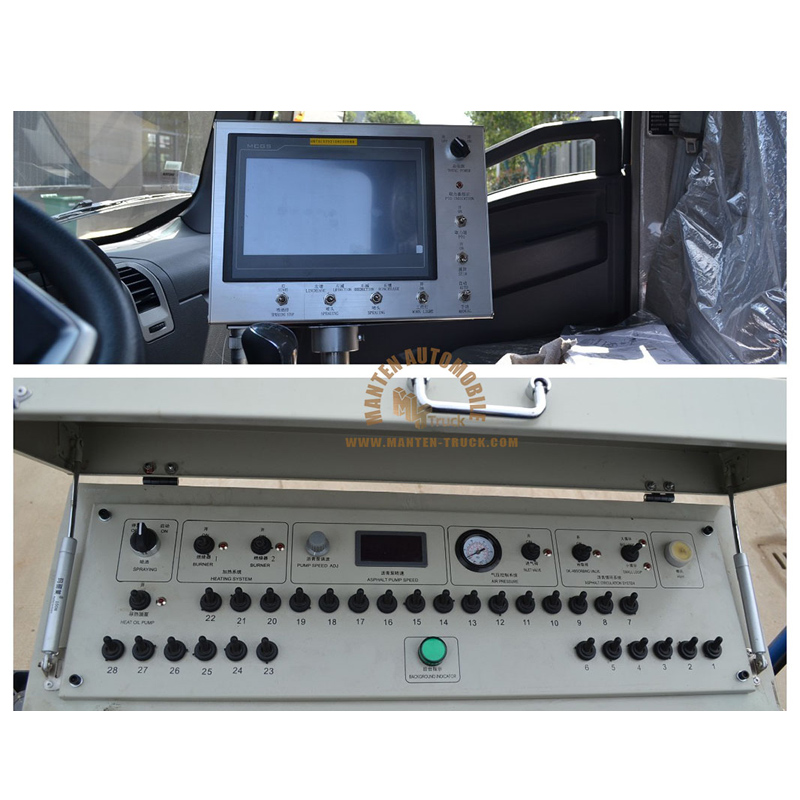

The asphalt distribution can not only be operated by the computer in the cab, but also can be done on the operating platform at the rear of the truck.

Two Control Ways Of Asphalt Spray
